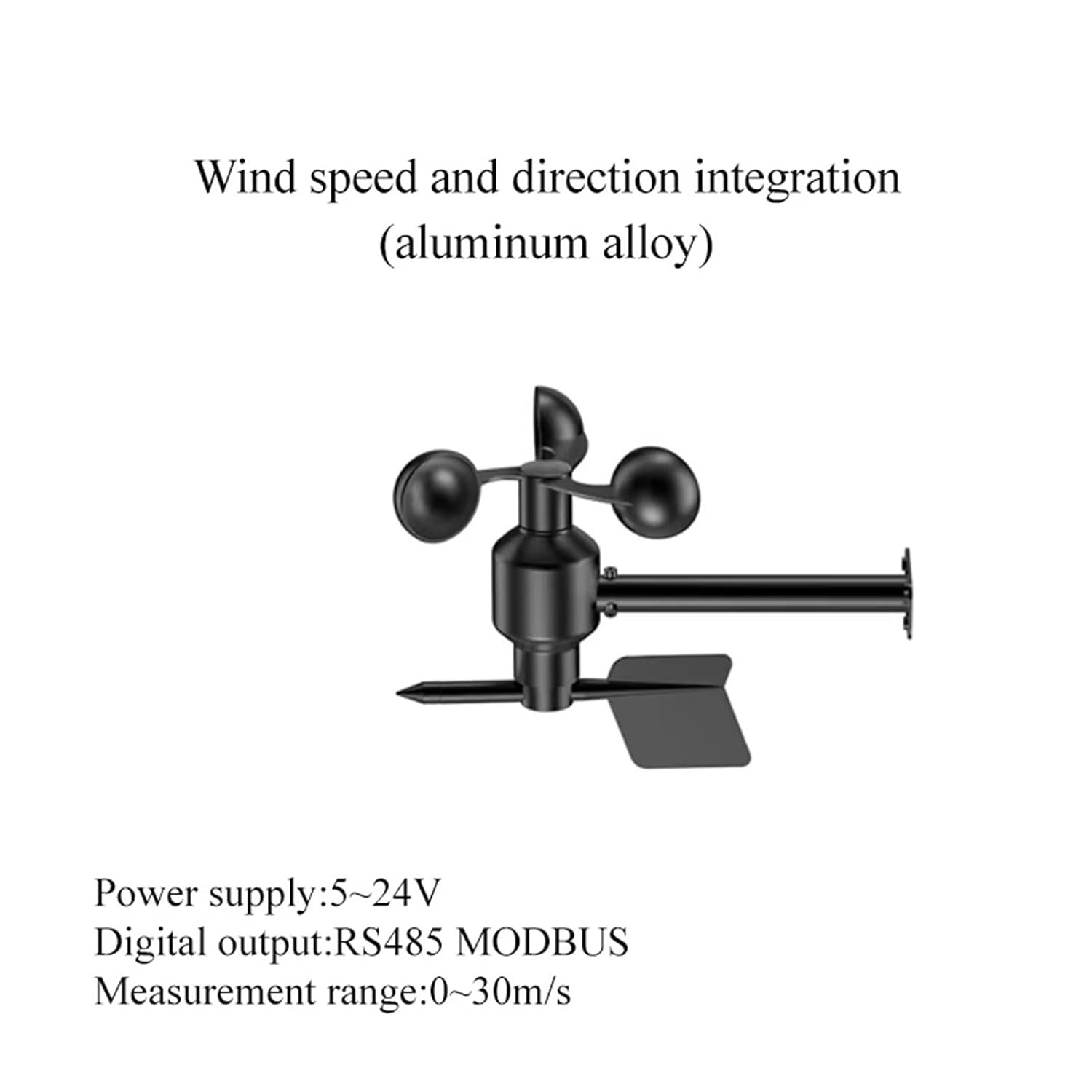

XS-WSDS02 Integrated Wind Speed and Wind Direction Sensor Aluminium Alloy Anemometer Wind Speed Measuring Anemoscope RS485 0-5V(XS-WSDS02 RS485)

Wind Speed GaugesXS-WSD02 Integrated Wind Speed and Wind Direction Sensor(Aluminium alloy)The sensor housing is made of aluminum material, which has good anti-corrosion and erosion resistance characteristics, ensuring that the sensor is free of rust and chisel phenomenon during long-term use. At the same time, it is combined with an internal smooth bearing system to ensure the accuracy of information collection. Internally integrated conversion mechanism, industrial microcomputer processor, standard current generator, current driver, etc.The circuit is designed according to EMI specifications, making the whole with extremely reliable anti-electromagnetic interference ability, and the electronic components are imported industrial-grade chips to ensure the stability of the measurement parameters and electrical performance.Technical ParametersWind speed measuring range0 ~ 30m/s; 0 ~ 50m/s; 0 ~ 60m/s; (Other ranges can also be )Wind direction range0 to 360°Starting wind speed0.3 m/s or lessAccuracy± (0.3+0.03V) m/s, ±1°Output signalA: Voltage signal (0 ~ 2V, 0 ~ 5V, 0 ~ 10V)B: 4 ~ 20mA (current ring)C: RS485 (Standard Modbus-RTU protocol, default device address: 01)D: SDI-12 (American Hydrological Organization Serial Data Communication Interface Protocol)Supply voltage (red and black lines)5 ~ 24V DC (when the output signal is 0 ~ 2V, RS485, SDI-12)12 ~ 24V DC (when the output signal is 0 ~ 5V, 0 ~ 10V, 4 ~ 20mA)Heating supply voltage (brown and white line)12 to 24V DCHeating power160mA@12V; 310mA@24VSettling time<; 1sResponse time<; 1sWorking environment<; 95%RHStorage environment<; 95%RH==========Battery Included : NoHigh-concerned chemical : NoneType : AnemometerModel Number : XS-WSDS02
