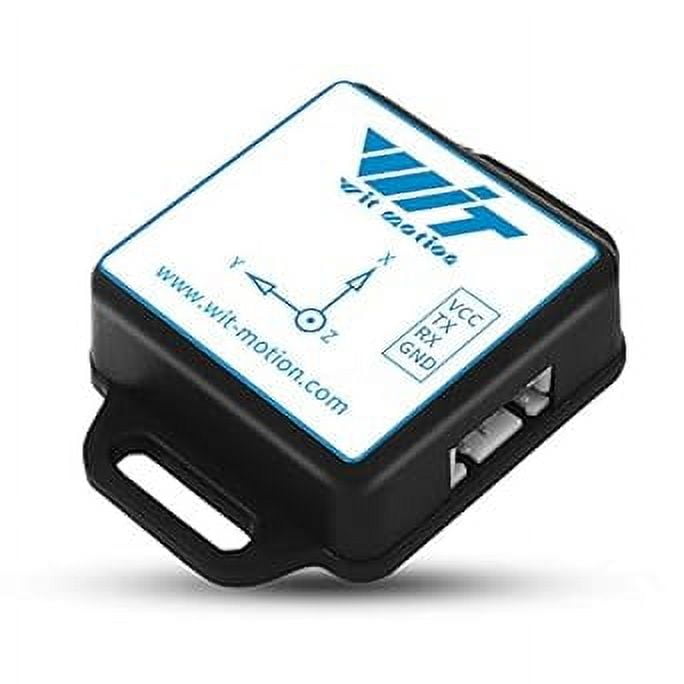

【WT901C-232 9-Axis Vibration Inclinometer】High-Stability Acceleration+Gyro+Angle (XY 0.05° Accuracy)+Digital Compass, Triaxial MPU9250 Gyroscope Sensor【Kalman Filtering】for Arduino, Raspberry Pi

Product document: https://wiki.wit-motion.com/english<br>(1)WT901 Inclinometer TTL version Gyroscope is good solution for angle measuring，acceleration measurement and angular velocity measurement,It packs a 3-axis gyro and a 3-axis accelerometer and 3-axis magnetic. <br>(2) Kalman filter combines the gyro and accelerometer to get high precision angle measurement,it can be used such as four-axis flight control and self-balancing robot, angle measurement and depth measuring and so on. <br>(3)The module can get accurate attitude in a dynamic environment. Attitude measurement precision is 0.05degrees. <br>(4)Using high-precision gyro accelerometer MPU9250, read the measurement data by serial port and IIC port. With advanced digital filtering technology, reduce the measurement noise and improve measurement accuracy. <br>(5)Using small case, quality assurance, can be installed on the customer's board <br> <b>Main Feature:</b> <br>1 Input voltage: 3V-6V <br>2 Consumption current: typical 20mA <br>3 Volume: 36mm X 51mm X 15mm <br>4 Measuring : Attitude angle: 3 axis Acceleration: 3 Axis Angular Velocity: 3 Axis Magnetic <br>5 Range: Acceleration: ± 16g, angular velocity: ± 2000 ° / s. <br>6 The data output frequency can reach 200Hz <br>7 Data Interface: Serial port UART(TTL level), I2C . <br>8 Baud rate (baud rate 2400-921600 kps. deault 9600kps). <br>9 Provide single-chip analytical sample code. <br>10 With GPS connectivity. Acceptable in line with NMEA-0183 standard GPS data <br>11 4 way expansion port for analog input and digital input and output <br>Note:Angle of Z axis will be accurate because of adding magnetic field correction .Requiring the magnetic unaffected. <br> <b>Packing list</b> <br>(1)WT901 Inclinometer TTL version Gyroscope 1 PCS

【 High Performance 】Rock-solid data output: 3-axis XYZ (Pitch Roll Yaw) Acceleration+ Gyro+ Angle+ Magnetic field+Quaternion, measurement range and output rate ( 0.2-200Hz) selectable 【 Robust Design 】X, Y-axis: 0.05° (Static) , X, Y-axis: 0.1° (Dynamic), Long term measurement, Premium casing, Small in Size 【 WITMOTION Advantage 】8-year Professional Attitude Measuring Solution Provider, sensors integrated R&D dynamic fusion algorithm and Kalman Filtering ensuring stable data output and excellent bias stability, low noise level, increasing measurement accuracy 【 Worry-free Support 】12-month warranty, lifetime friendly customer service by WitMotion team. Option 1. The tutorial link is printed on the guiding card inside the package. Option 2. search wit-motion(dot)com and download the complete tutorial. Option 3. contact us if you need any help, support (at) wit-motion (dot) com 【 What You Get 】1 x WitMotion WT901C RS232 Accelerometer sensor+ 1* 4-PIN Dupont cable +1 x Welcome guide (USB-UART converter not included )

Brand	WitMotion
Model	WT901C-232
Size	36mm X 51mm X 15mm
Retail packaging	Single Piece
Pack quantity	1
