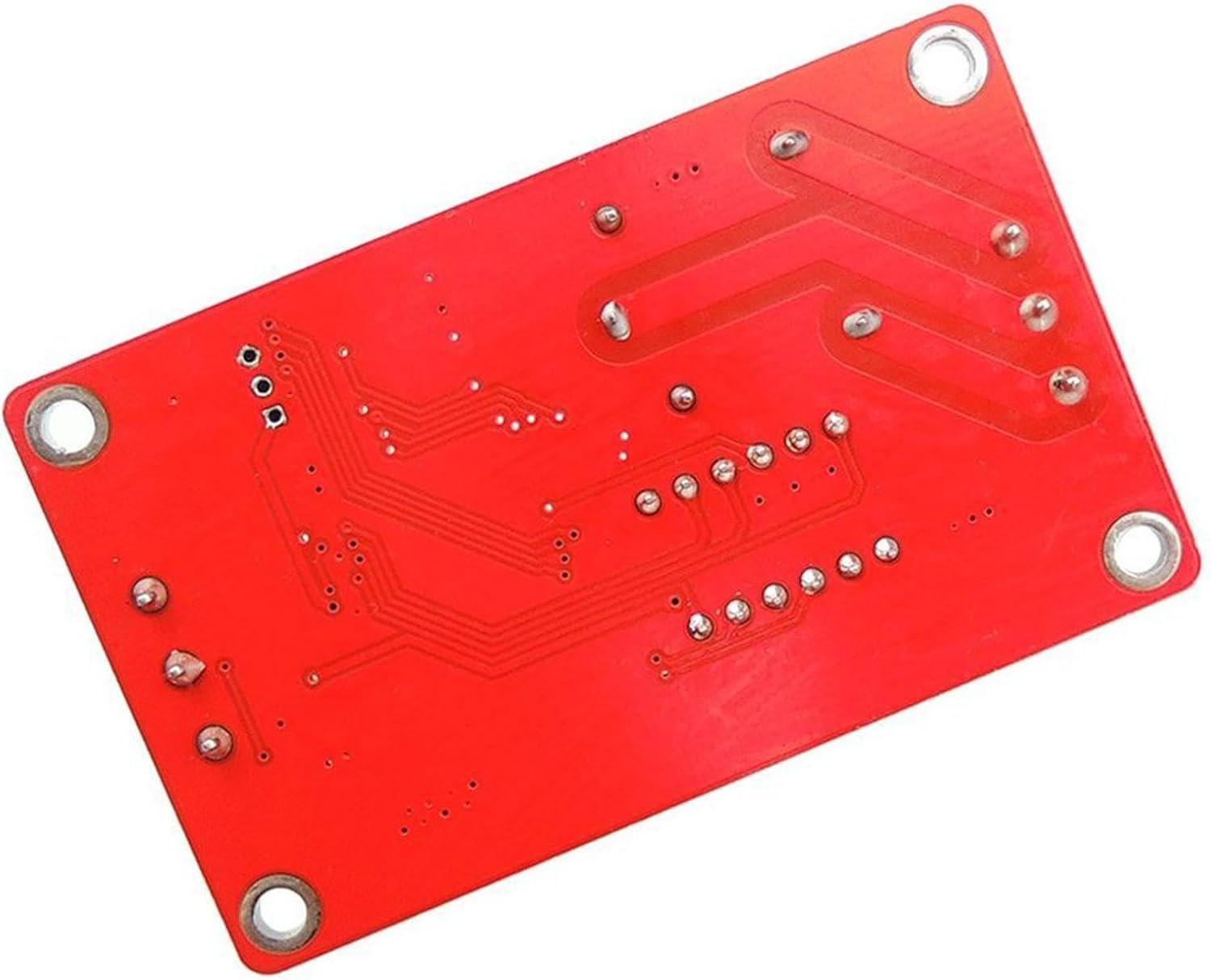

SEIWEI 12 V FRM01 Multifunction Infinite Loop Timing Self-Lock Relay Cycle Timer Module PLC Delay for Smart Home, Automatic Control

Features:Function 1-8 on power-up self-start function 9-18 require high pulse signal (high duration is shorter than 20 ms, hereinafter the same) trigger the startHigh quality power relay modules, high power high-voltage transistor, red, blue signal lightsNew upgrade version from 8 kinds to 18 kinds functions.can be widely used in a variety of power control type applicationsFunction:1.Timing pull in2.Timing disconnected3.Timing pull in and disconnected4.Timing off then pull in5.Infinite loop timing mode 16.Infinite loop timing mode 27.Finite loop timing mode 18.Finite loop timing mode 29.Self-lock relay mode10.Trigger relay mode11.Trigger timing pull in12.Trigger timing disconnected13.Trigger timing pull in and disconnected14.Trigger timing disconnected and pull in15.Infinite loop timing mode 116.Infinite loop timing mode 217.Finite loop timing mode 118.Finite loop timing mode 2 Module Interface:Module control terminal: 3-wire port, all interfaces are terminal,very easy to useDC :DC positive power(with 5V, 12V and 24V modules to choose from)DC-:DC negative powerCH1:input detected port, high level effectiveRelay outputs: 3-wire port, all interfaces are terminalsNO:relay normally open port, relay pull in before as the vacant,after pull in with the COM1 short connectionCOM:relay common portNC:relay normally closed port,relay with COM1 short connection before pull in,vacant after pull in Package Contents:1 x FRM01 Multifunction Self-lock Relay Cycle Timer Module PLC Delay

• Function 1-8 on power-up self-start function 9-18 require high pulse signal (high duration is shorter than 20ms, hereinafter the same) trigger the start.
• High quality power relay modules, high power high-voltage transistor, red, blue signal lights.
• New upgrade version from 8 kinds to 18 kinds functions.can be widely used in a variety of power control type applications.
• Top-quality high-voltage power supply modules, discrete power supply before replacing the system more stable and reliable. FRM01 multifunction relay control module, designed specifically for a variety of users with different needs, the use of micro-controller as the primary Control unit, preset 18 kinds of functions
• Load capacity: normally open port maximum load capacity: DC 0-30V/10A, AC 0-250V/10A;normally closed port maximum load capacity: DC 0-28V/10A, AC 0-125V/10A
