Podazz 2pcs W1209 12V DC Digital Temperature Controller Board Micro Temperature Control Module Switch

1. Product Model: W1209 With Case2. Temperature Control Mode: ON / OFF3. Temperature Range :-50 - 110 degree centigrade4. Resolution: When temperature is 0.1 degree, the resolution is -9.9~99.9, other temperature segment is 1 degree.5. Control Accuracy: 0.1 degree6. Hysteresis Accuracy: 0.1 degree7. Product Size:49mmx40mm/1.92''x1.57''8. Refresh Rate: 0.5s9. High Temperature Protection: 0 - 110 degree centigrade10. Supply Voltage: DC 12V;Output Voltage: DC 12V;11. Static Current: Less than 35MA, attract current less than 65MA12. Output Power: 20A relay13. Measurement Input: NTC (10K 0.5%) Waterproof Sensor14. Environmental Requirements: -10 - 60 degree centigrade;Humidity 20% - 85%;15. Thermostat output: 10A relay

• 【Temperature Measurement Range】-50~110℃. Control Precision: 0.1 celsius.Input Power (DC): 12V; Measuring Inputs: NTC (10K 0.5%) ; Waterproof Sensor: 0.5M; Output: 1 Channel Relay Output, Capacity: 10A; Power Consumption: Static Current: 35mA; Current: 65mA.
• 【Advantages】The temperature controller board takes on stable performance and nice consistency,which is more intelligent and will consume lower power.
• 【NTC10K waterproof probe】equipped for convenient usage. The NTC probe is allows to control the temperature even of fluids, allowing the controlled heated or cooling.

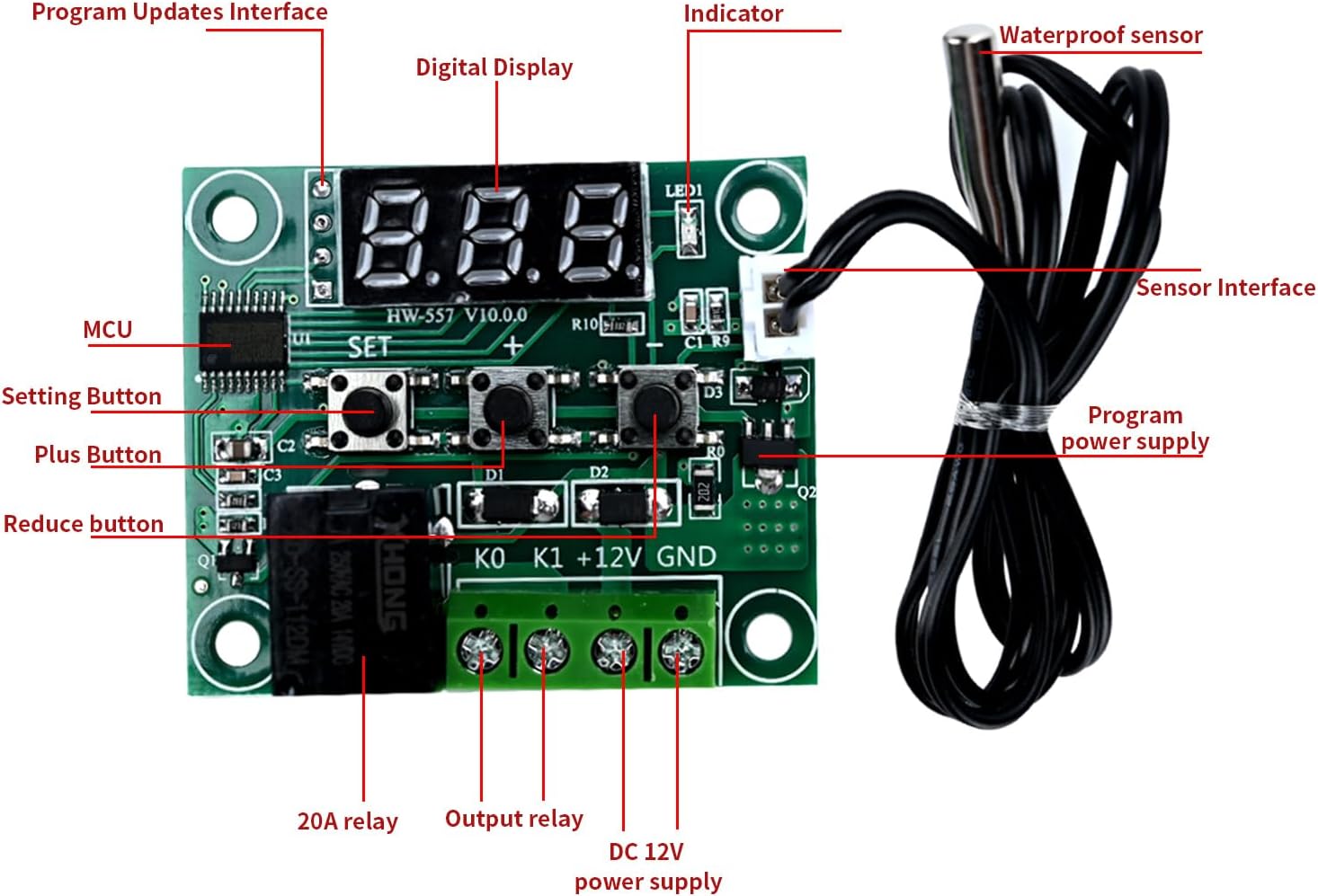

• 【Function】The W1209 thermostat module controller has a sensor input, keys, LED display, and a relay. It can be reprogrammed for control, timing, or counting.
• 【Wide Application】This can be applied in automotive electronics, lighting electronics, household appliances, smart home and so on.
