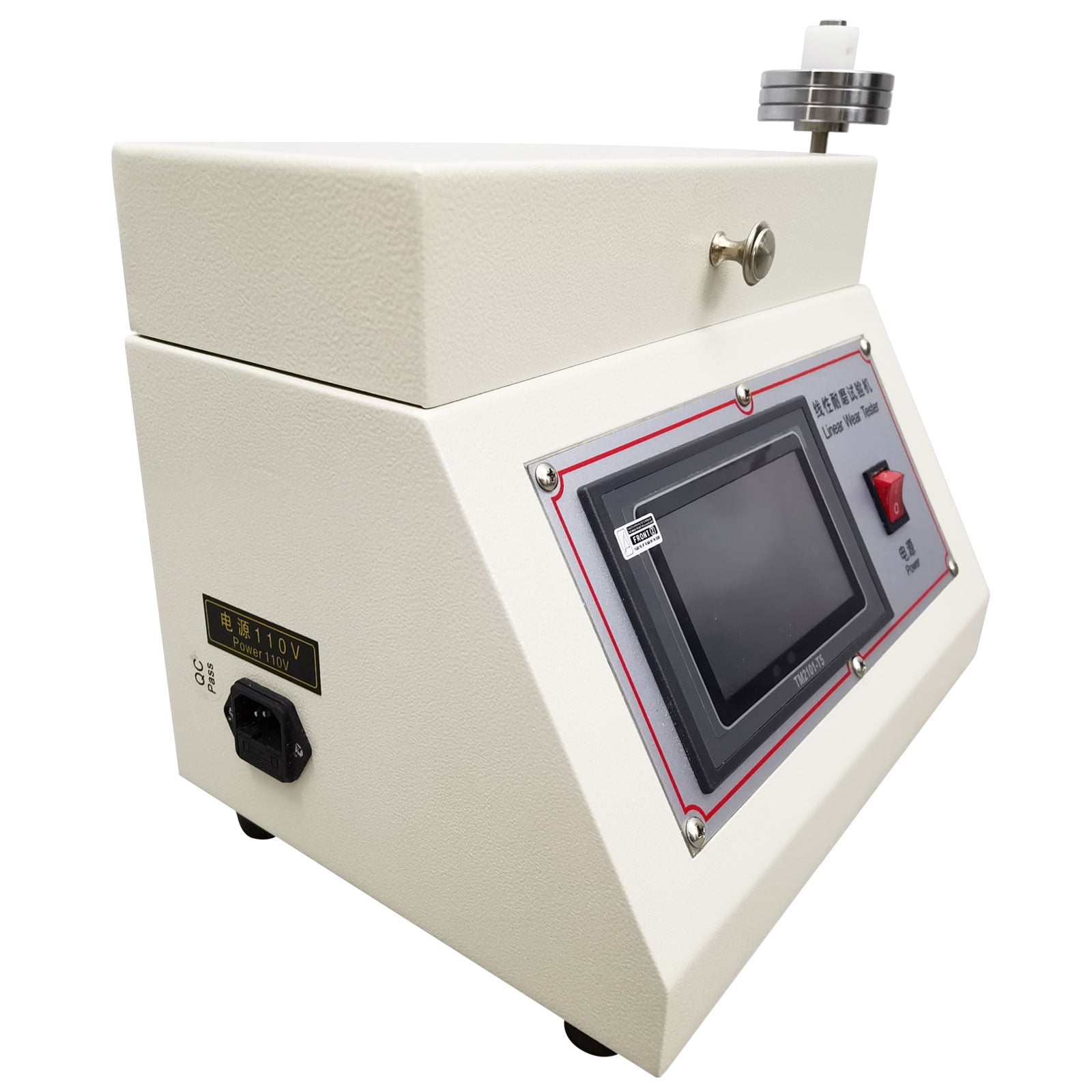

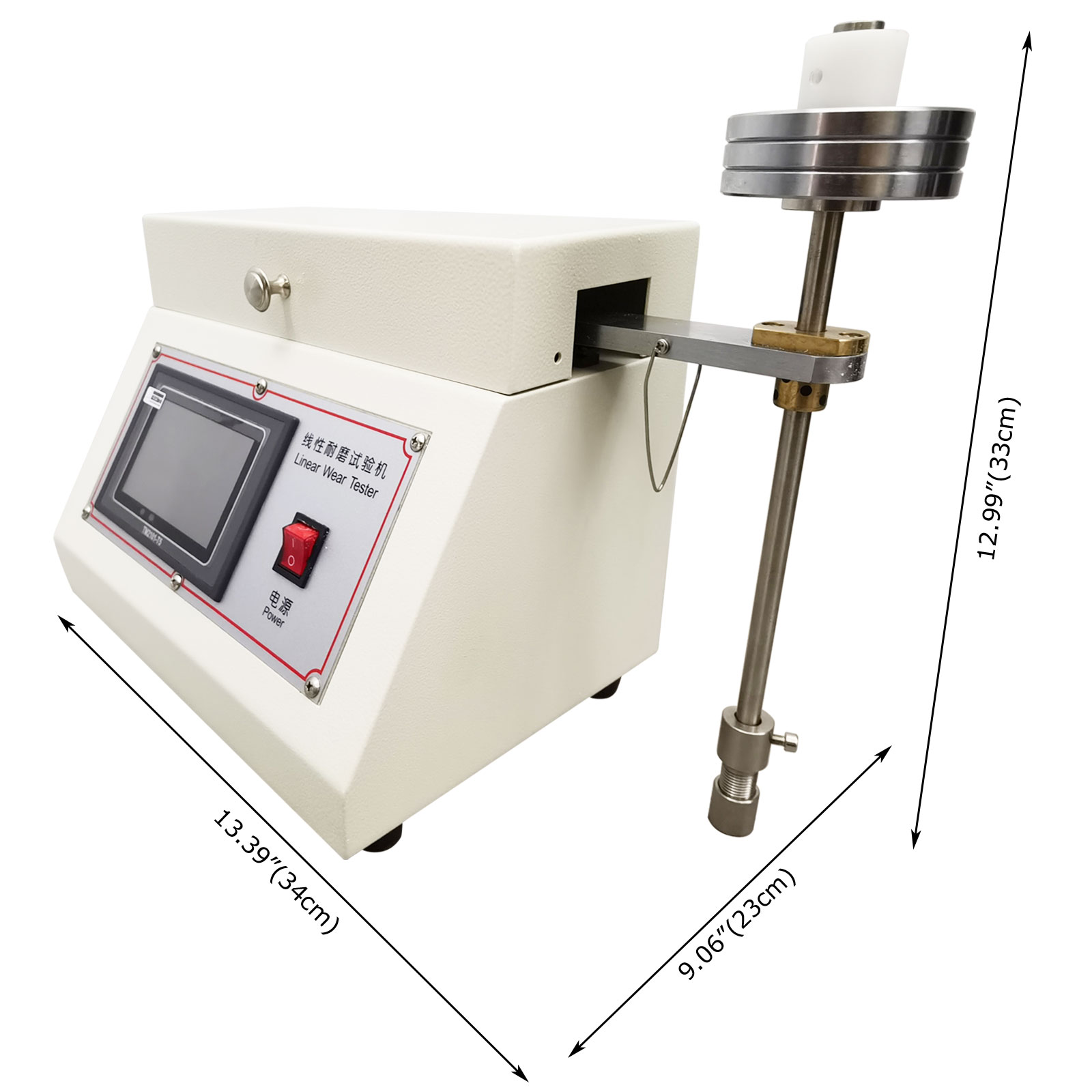

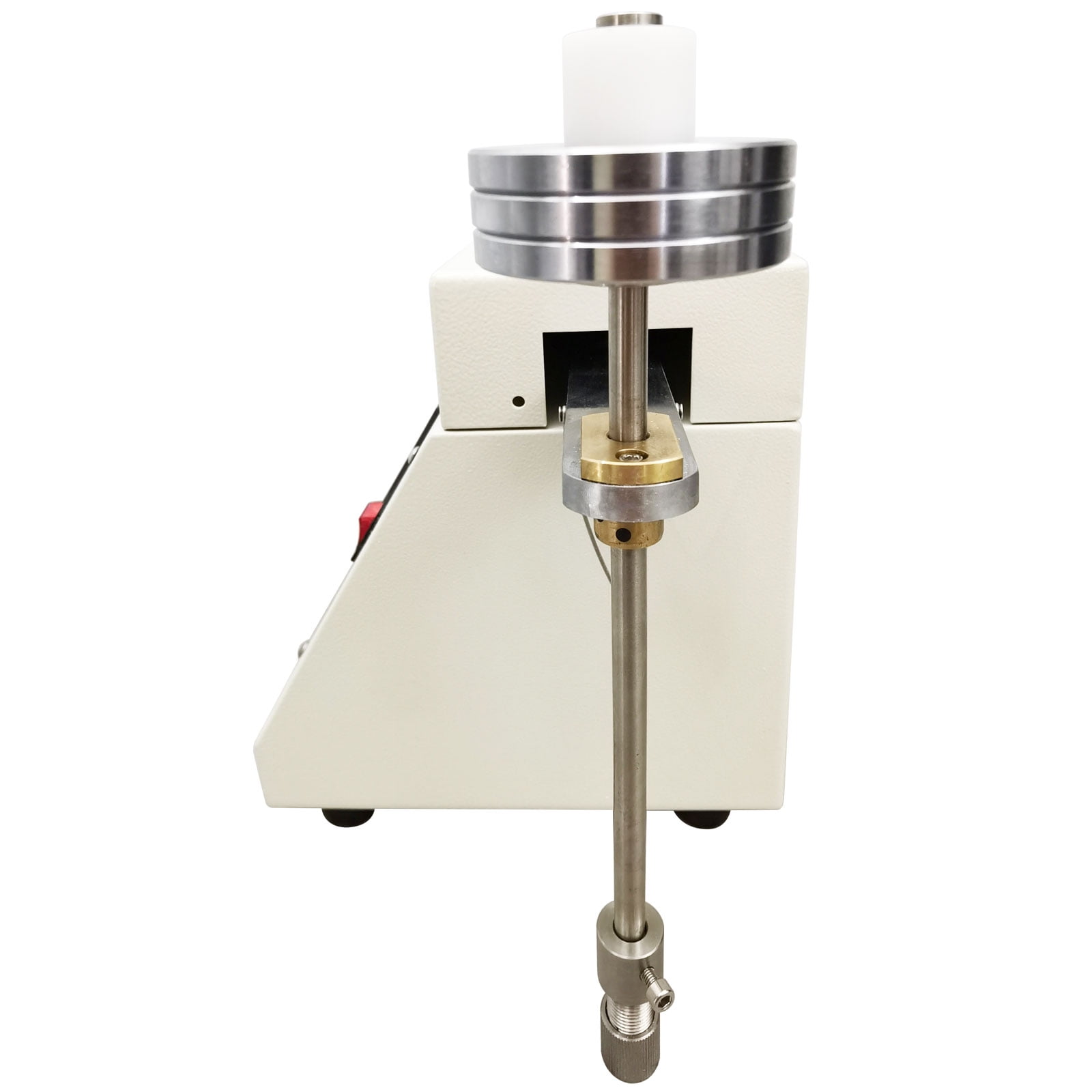

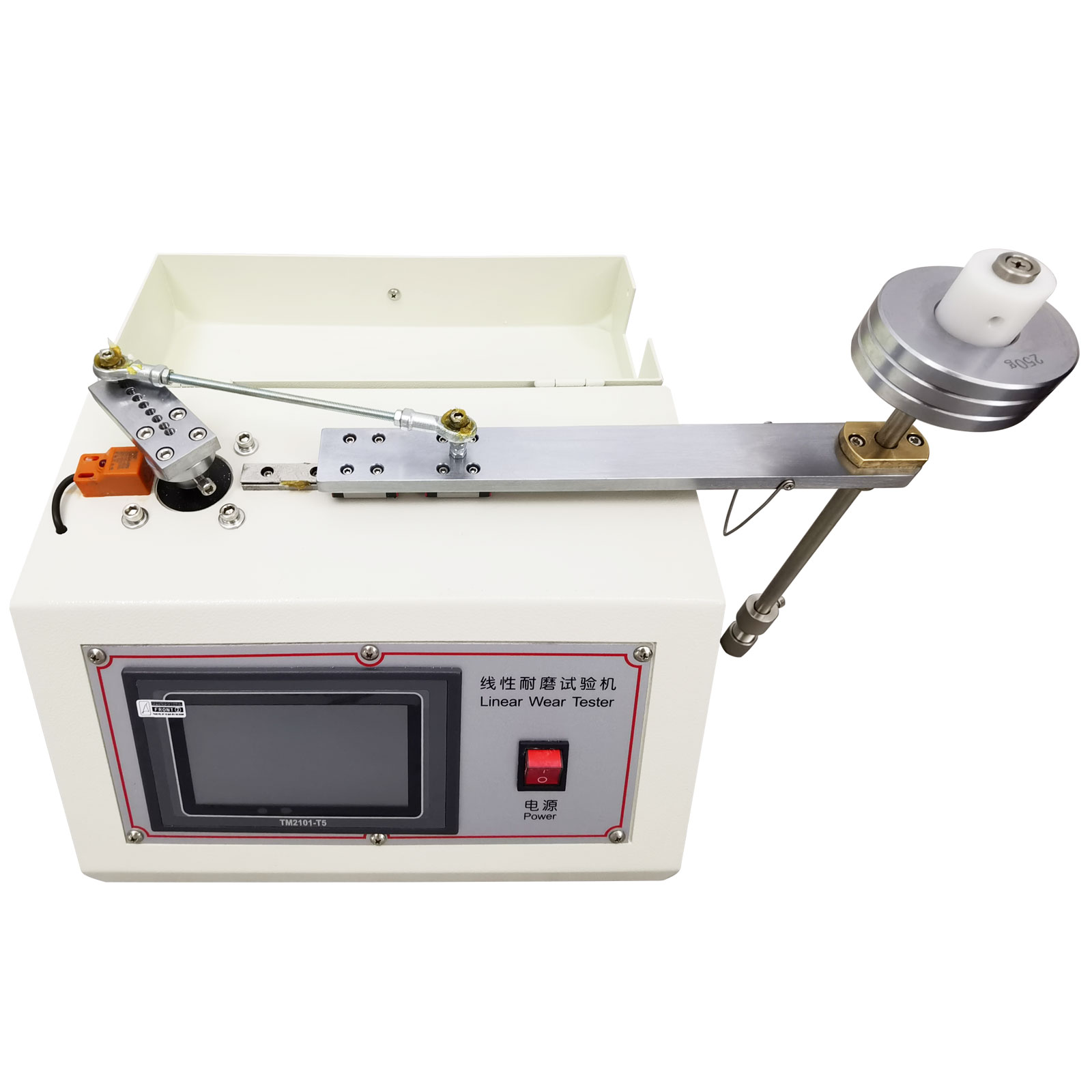

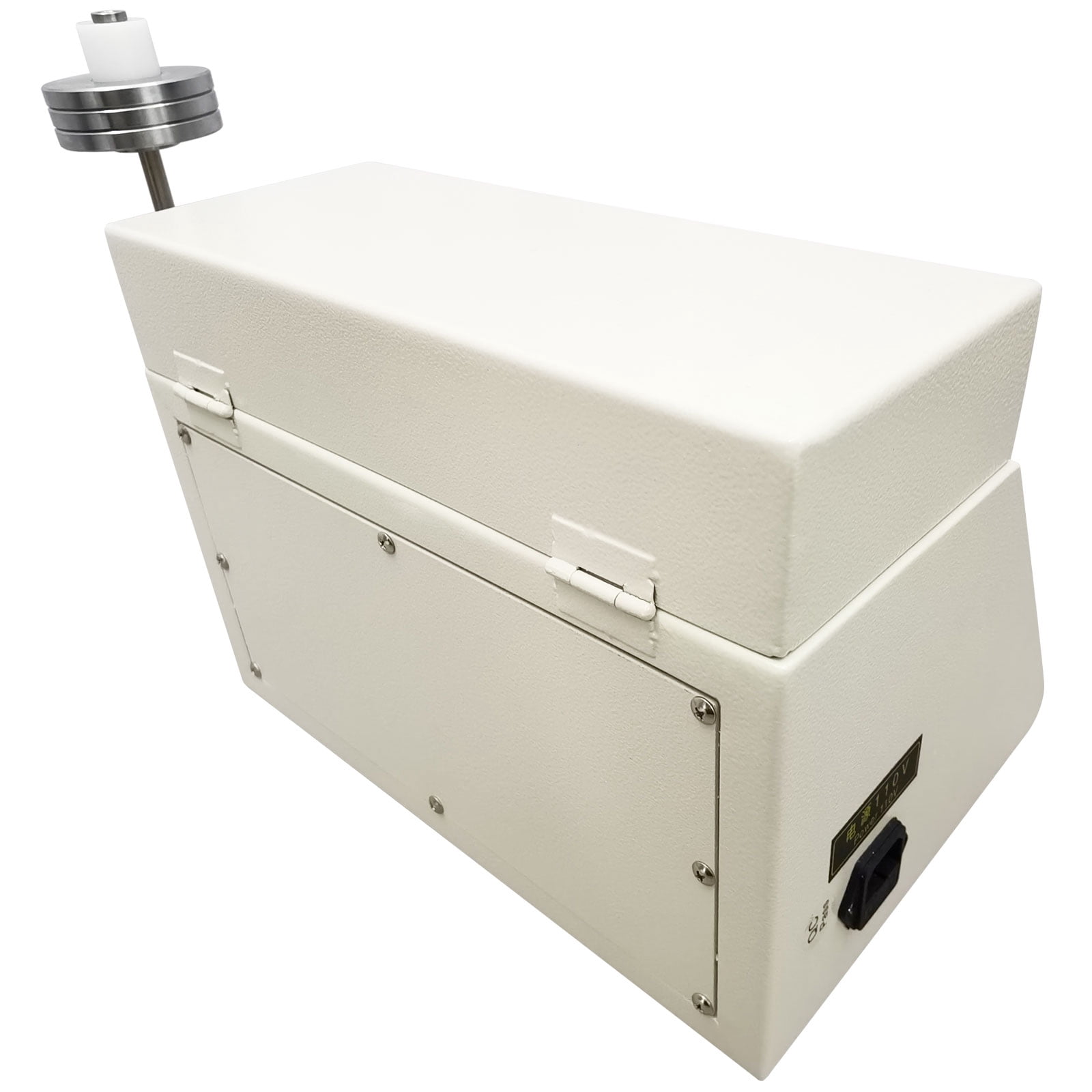

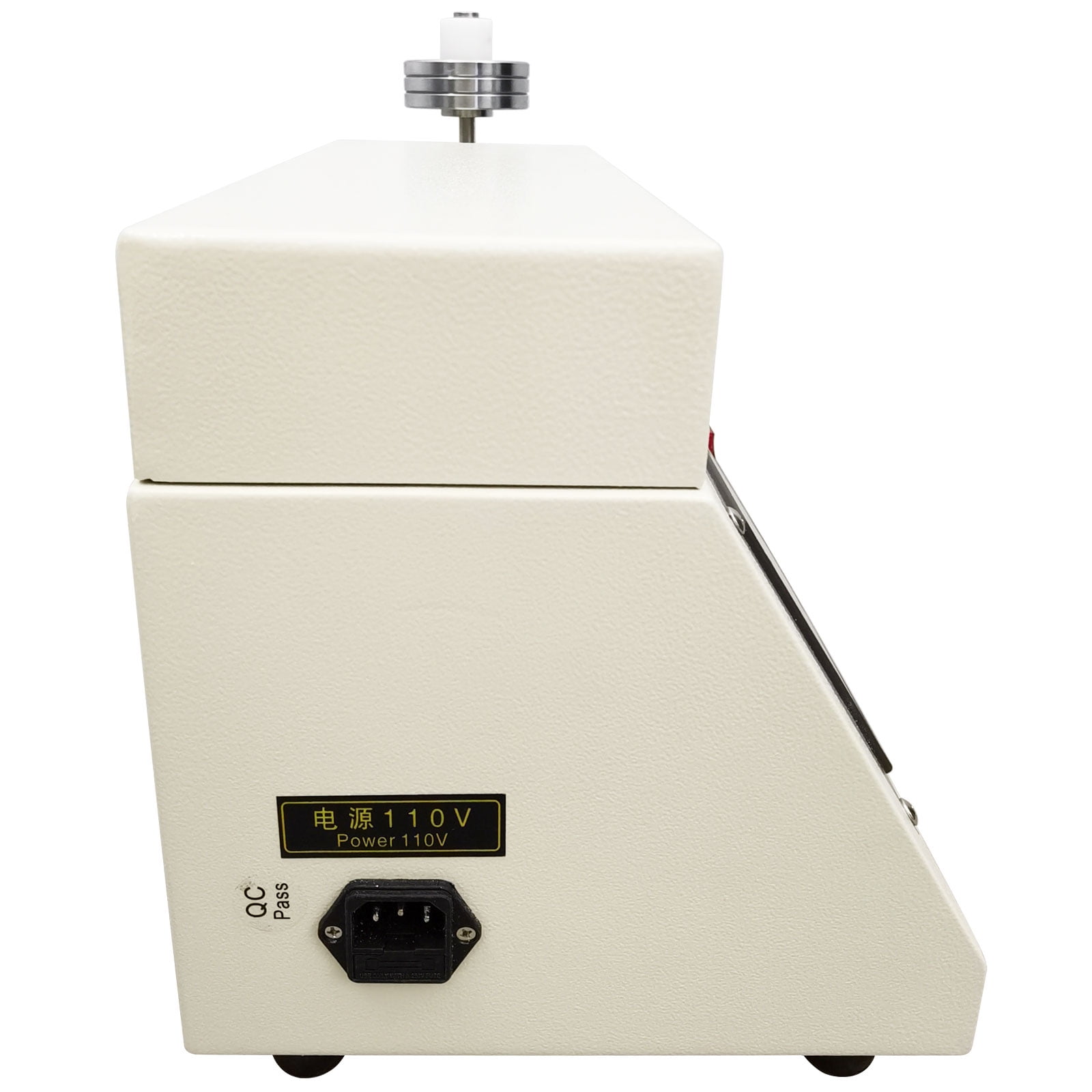

Linear Wear Scratch Tester Machine 110V

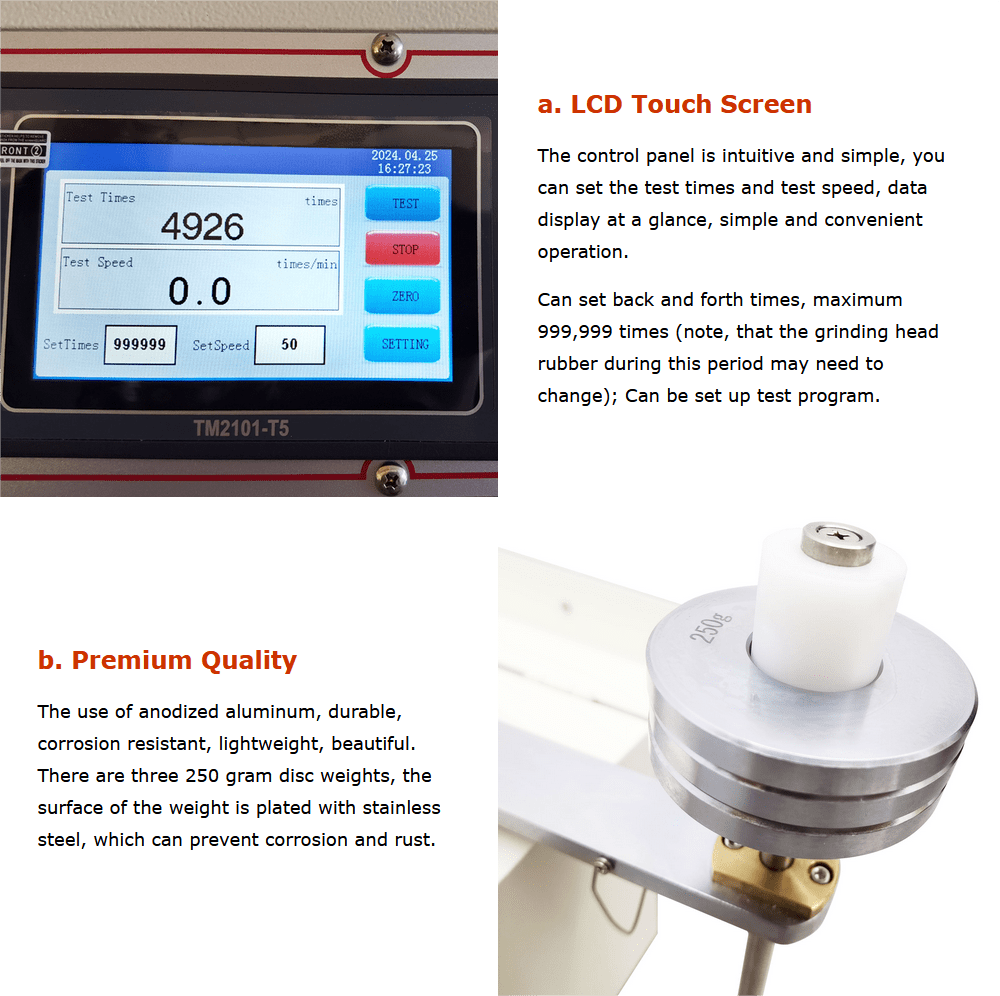

Introduction: <br>Our linear wear tester is suitable for testing the wear resistance of plastics, rubber, auto parts, leather and textile, electroplating, paint, printing and other products. It can be used to evaluate the wear-resisting property of the products, and also can be used for the single or multiple scratches and color transference of the affordable products. LCD touch screen control, adjustable distance, speed, dry grinding test and wet grinding test can be carried out. Using high quality materials, stable operation and accurate test results. Suitable for testing any size or shape of the product, the abrasion test of the product with contour surface and polishing surface characteristics is ideal. <br> <br>Parameters: <br>Voltage: 110V <br>Size of Probe: 0.79"*0.79"(20*20MM) <br>5 Optional Travel Distances: 0.5", 1", 2", 3" And 4"(Special Travel Distances Can Be Customized) <br>Friction Frequency: 2-60 Times/MIN, Adjustable Speed <br>Compliance with Relevant Standards: ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799, Complies with CE standards, with CE safety mark <br>Package Size: 19.29"*12.20"*12.99"(49CM*31CM*33CM) <br>Net Weight/Gross Weight: 30.42LBS(13.8KG)/32.63LBS(14.8KG) <br> <br>Items Included: 056887-EnzS <br>110V Linear Wear Tester Wear Testing Machine Linear Scratch Tester Abrasion Tester <br>Linear Wear Tester*1 <br>Power Cord*1 <br>Hex Wrench*9 <br>Rubber Strip*1

• Parameters such as moving distance, speed, revolution and load can be set.
• A variety of different wear media and accessories can be selected. (Optional sample holder and other optional accessories for damage testing as well as alcohol testing, coin scratching, etc.)
• Ensure the stability and accuracy of the test: The general grinding head is made of high-quality wear materials. Can ensure the stability of the test.
• There are rubber support legs at the bottom, anti-slip and wear-resistant, with a certain cushioning, to ensure the smooth operation of the machine.
• The bottom of the machine has a certain distance from the table, which is convenient for handling , and can prevent water from entering the machine from the bottom.
