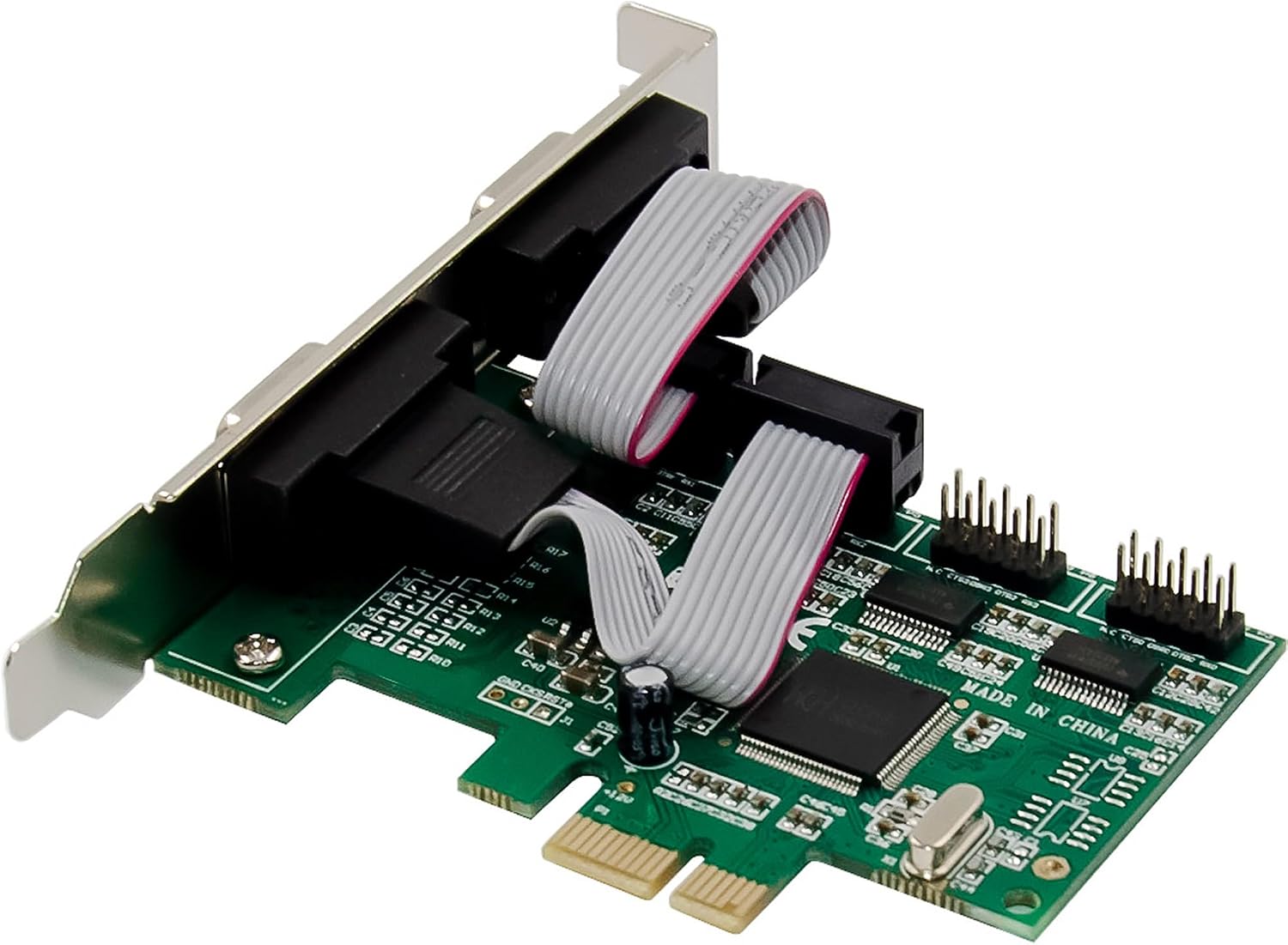

Inline PCIe Serial Card, 4 Port RS-232 Interface, D-Sub 9, CH384L, Low Profile Brackets, UART Interface, High Data Rate, 76619E

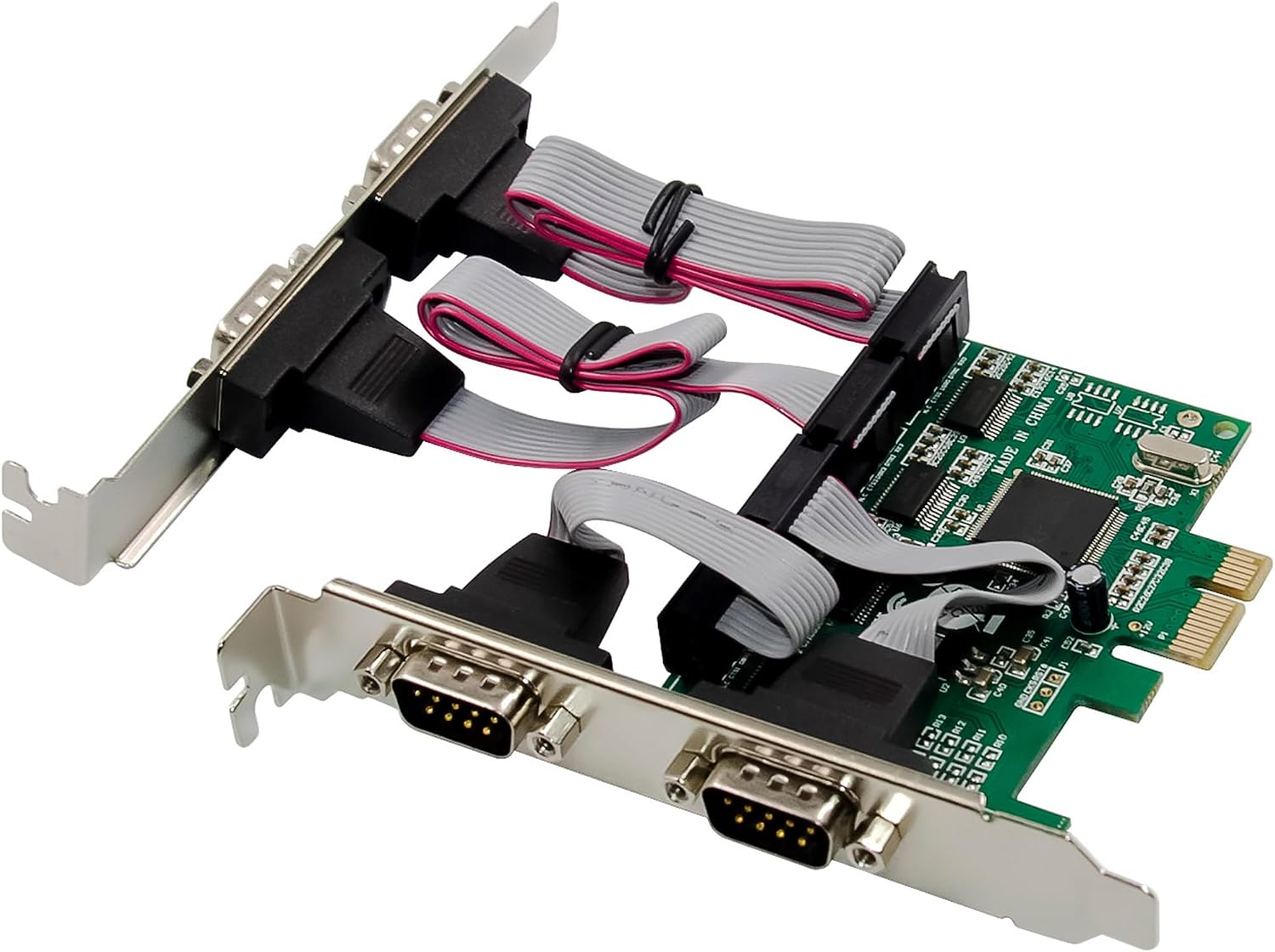

The InLine PCIe 4-Port RS-232 Card is the ideal solution for expanding modern PCs and industrial applications with four additional serial ports. Each of the four ports uses the proven D-Sub 9 format and supports a wide range of serial signals including TXD, RXD, RTS, CTS, DTR, DSR, DCD and RI. Thanks to the powerful CH384L chipset, the card enables reliable transmissions with flexible baud rates up to 921,600 bps. The integrated FIFO buffer with 256 bytes per direction ensures stable connections are maintained even under high data loads. This makes the card the first choice for professional applications such as machine control, metrology, network management or POS systems. The PCIe x1 interface allows easy integration into existing systems. The card is compatible with both standard and low-profile cases - corresponding brackets are included. The integrated ESD protection up to ±15 kV protects the interfaces from electrostatic discharges. Whether in industry or for demanding hobby projects, this card combines proven technology with modern interface architecture. It is suitable for both current Windows versions and many Linux distributions and offers a wide range of applications for professional and semi-professional users. Additional Technical Specifications: PCIe standard: PCIe v1.1 x1-Lane (compatible with PCIe 2.0 and above) Connectors: 4x RS-232, D-Sub 9 plug (male). Chipset: CH384L Baud rates: 50 to 921,600 bps (transfer speed per second) FIFO buffer: 256 bytes for transmitting and receiving data (stable transmission at high data rates). Signal sets: TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI. Transmission mode: full duplex Data bits: 5, 6, 7 or 8 bits (depending on the connected device). Stop bits: 1 or 2 (identification of the transmission end). Parity: None, straight, odd, mark, space (serial communication test settings) ESD protection: up to ±15 kV. Operating temperature: 0°C to 55°C. Storage temperature: -40°C to 70°C. Maximum humidity: 90%, non-condensing Supported Operating Systems: Windows 7 / 8 / 8.1 / 10 / 11. Windows Server 2008 R2 and later Linux from Kernel 2.6.30. Package includes: 1 x InLine PCIe 4-Port RS-232 card, 4 x D-Sub 9 connectors. 4 x low-profile slot brackets. 1 x driver CD. 1 x user manual in German/English.

• Reliable serial communication: Four independent RS-232 interfaces in D-Sub 9 format allow multiple devices to be connected simultaneously.
• INDUSTRIAL GRADE CHIPSET The CH384L controller provides stable transmissions up to 921,600 bps and supports all major RS-232 signals.
• Flexible integration: The PCIe x1 card fits into modern computers and is compatible with PCIe v2.0 and later – including low-profile brackets.
• High-quality signal processing: A 256-byte FIFO buffer and ±15 kV ESD protection ensure safe and interference-free data transmission.
• Broad operating system support: Compatible with Windows 7 to 11, Windows Server 2008 R2 and major Linux distributions from Kernel 2.6.30.
