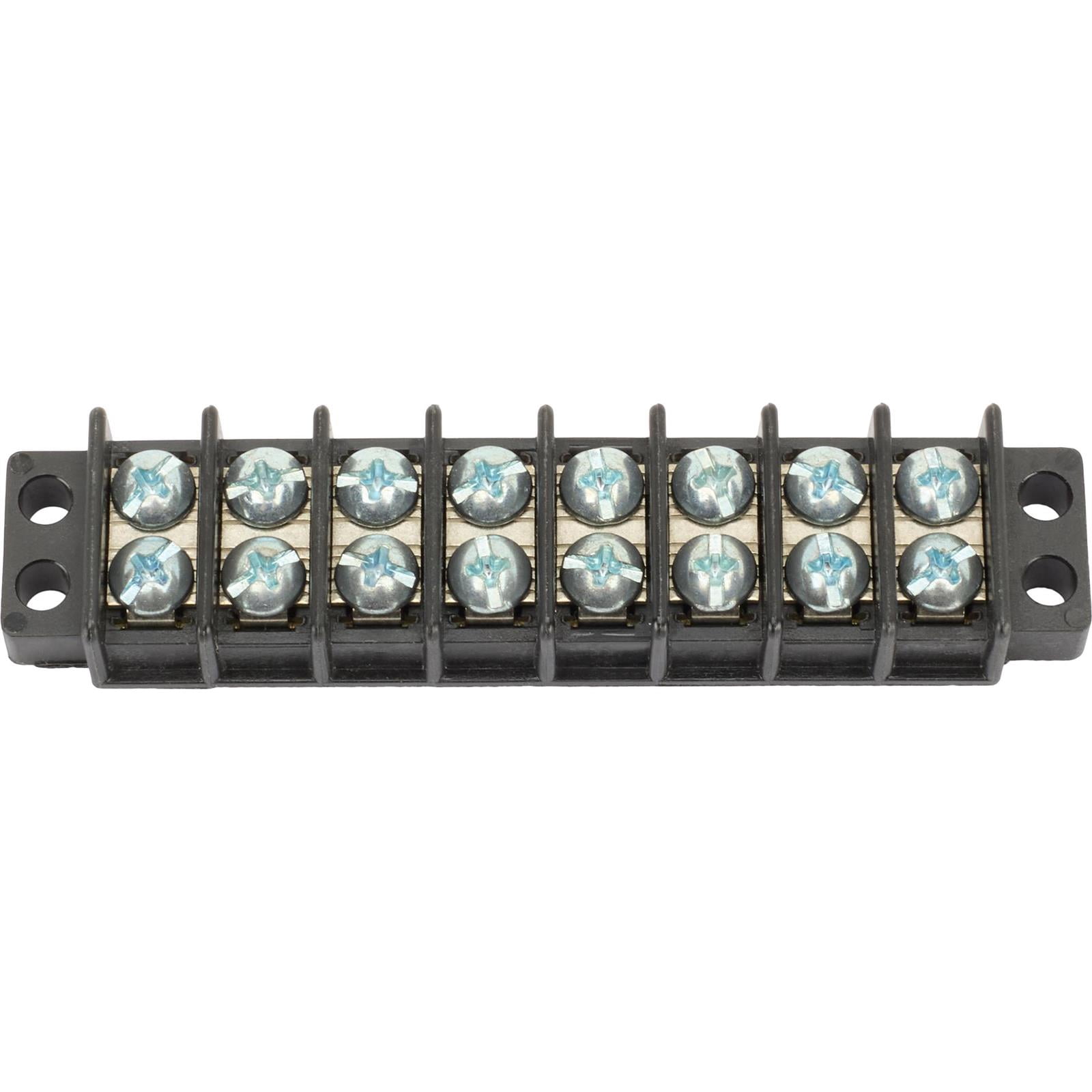

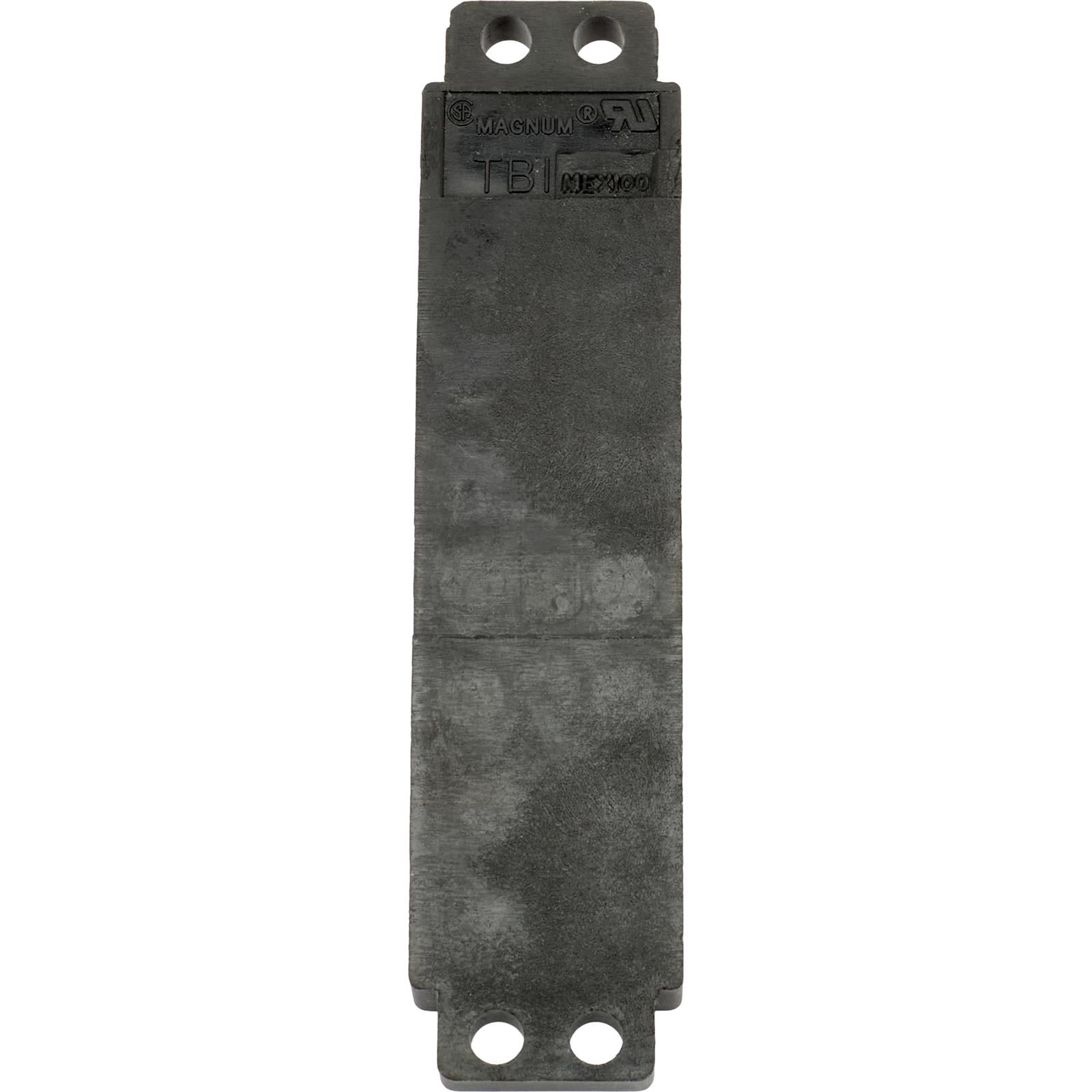

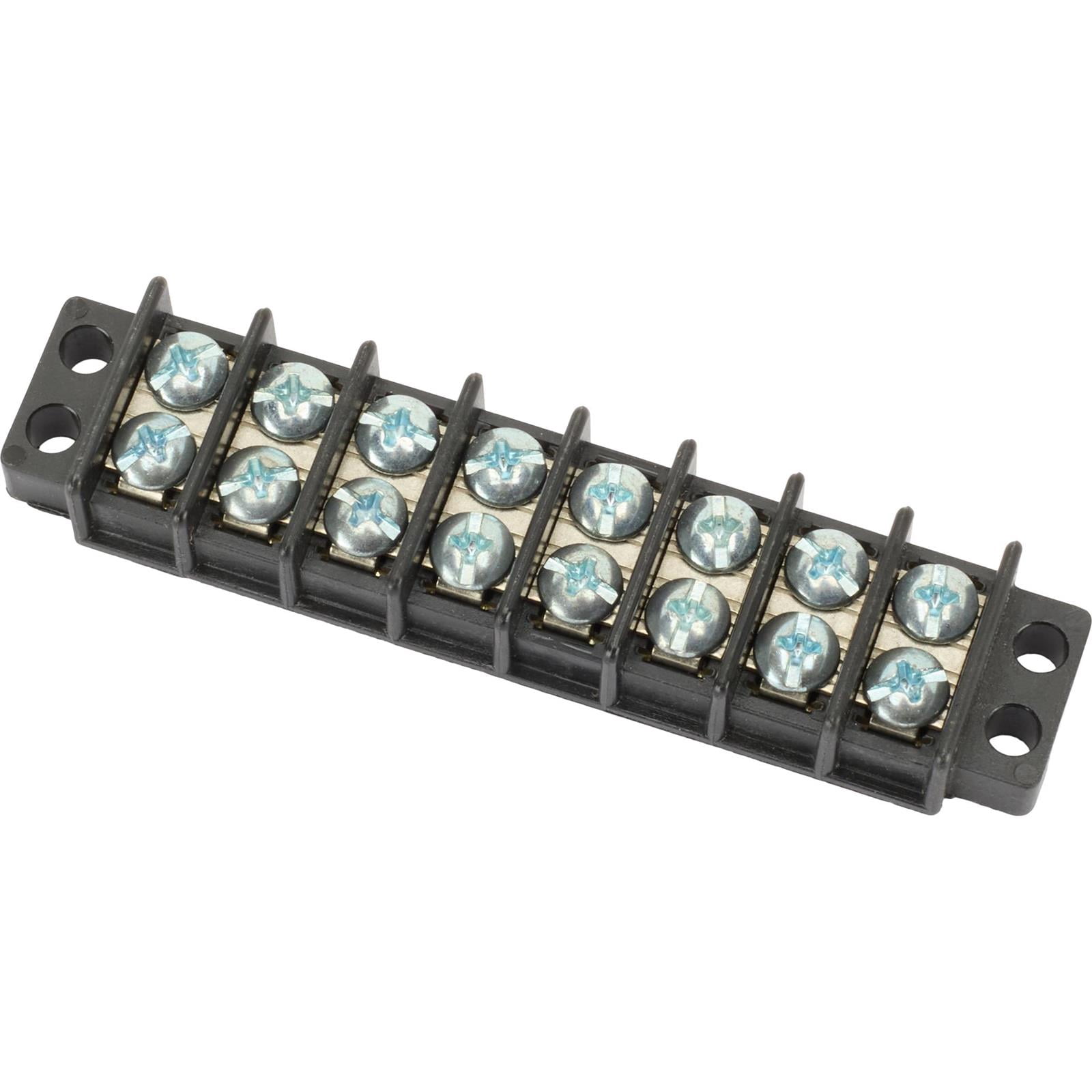

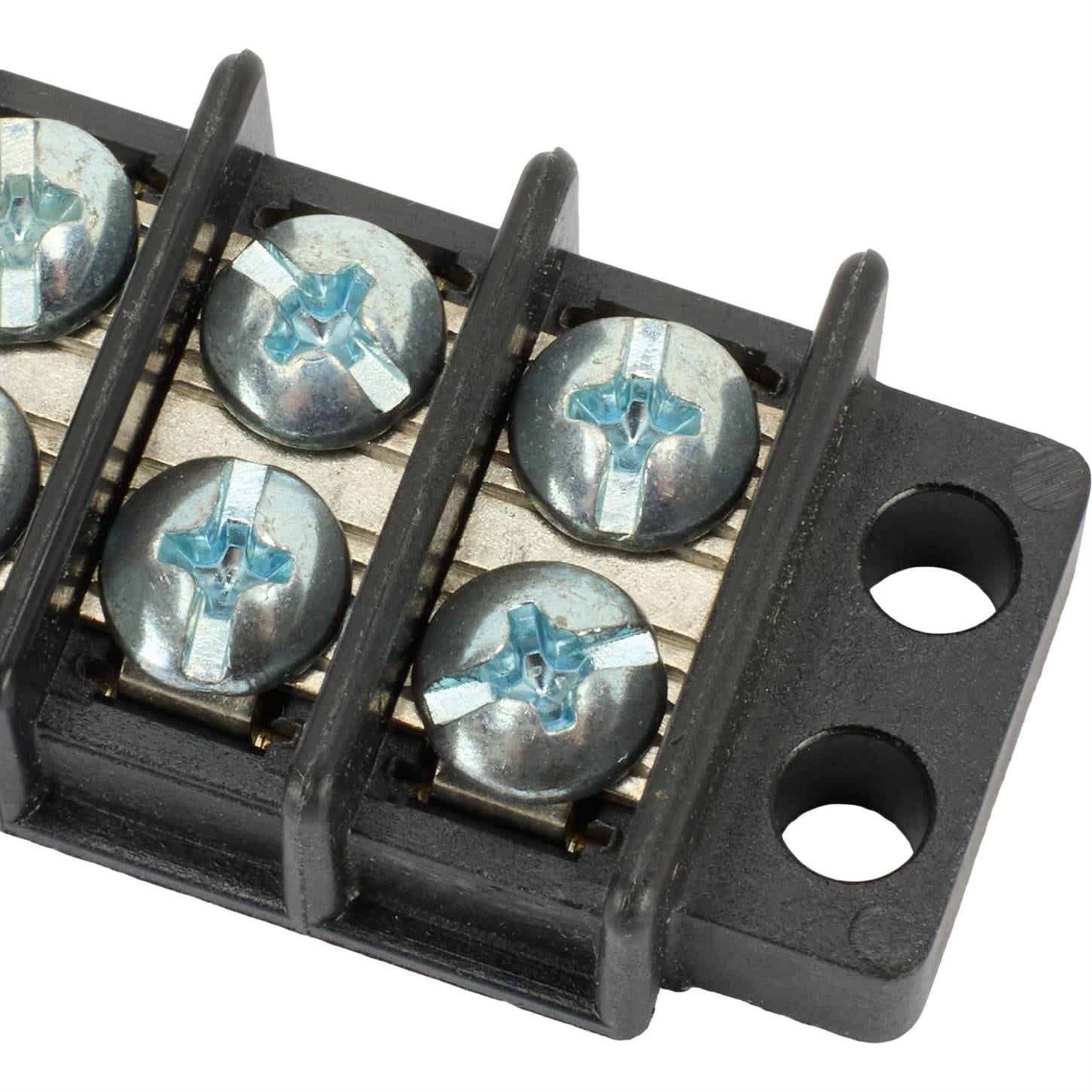

Electrical 8 Terminal Block Bus Strip
Product details
| Management number | 238482012 | Release Date | 2026/07/11 | List Price | $9.62 | Model Number | 238482012 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Connect all the wires in your panel or enclosure in one convenient place. Also known as barrier terminal strips, these blocks have screw terminals—just loosen a screw and wrap a stripped wire end around it (or use a spade terminal) and tighten the screw. All have four mounting holes. Color is black. UL recognized and CSA certified. Phenolic block. Tin-plated brass terminals. Ni-plated steel screws. Amps Per Circuit: 20A. For Wire Size, AWG: 22-12. Screw Terminal Size: #6-32. Center-to-Center: 0.38" Mount Hole Diameter: 0.17" Note: These are terminal strips and are NOT intended for use as ground strips. To be used as a ground strip, all terminals on one side would need to be pigtailed together. Item Details3.66" L x 0.87" W x .047" H
- Connect all the wires in your panel or enclosure in one convenient place
- UL recognized and CSA certified
- Tin-plated brass terminals
- Ni-plated steel screws
- Amps Per Circuit: 20A
| Volts | 20 V |
|---|---|
| Number of pins | 8 |
| Brand | Speedway Motors |
| Dimensions | 3.66 x 0.87 x 1.00 in |
| Color | black |
| Count per pack | 1 |
| Weight | 1 lb |
| Has written warranty | No |
| Model name | Electrical 8 Terminal Block Bus Strip |
