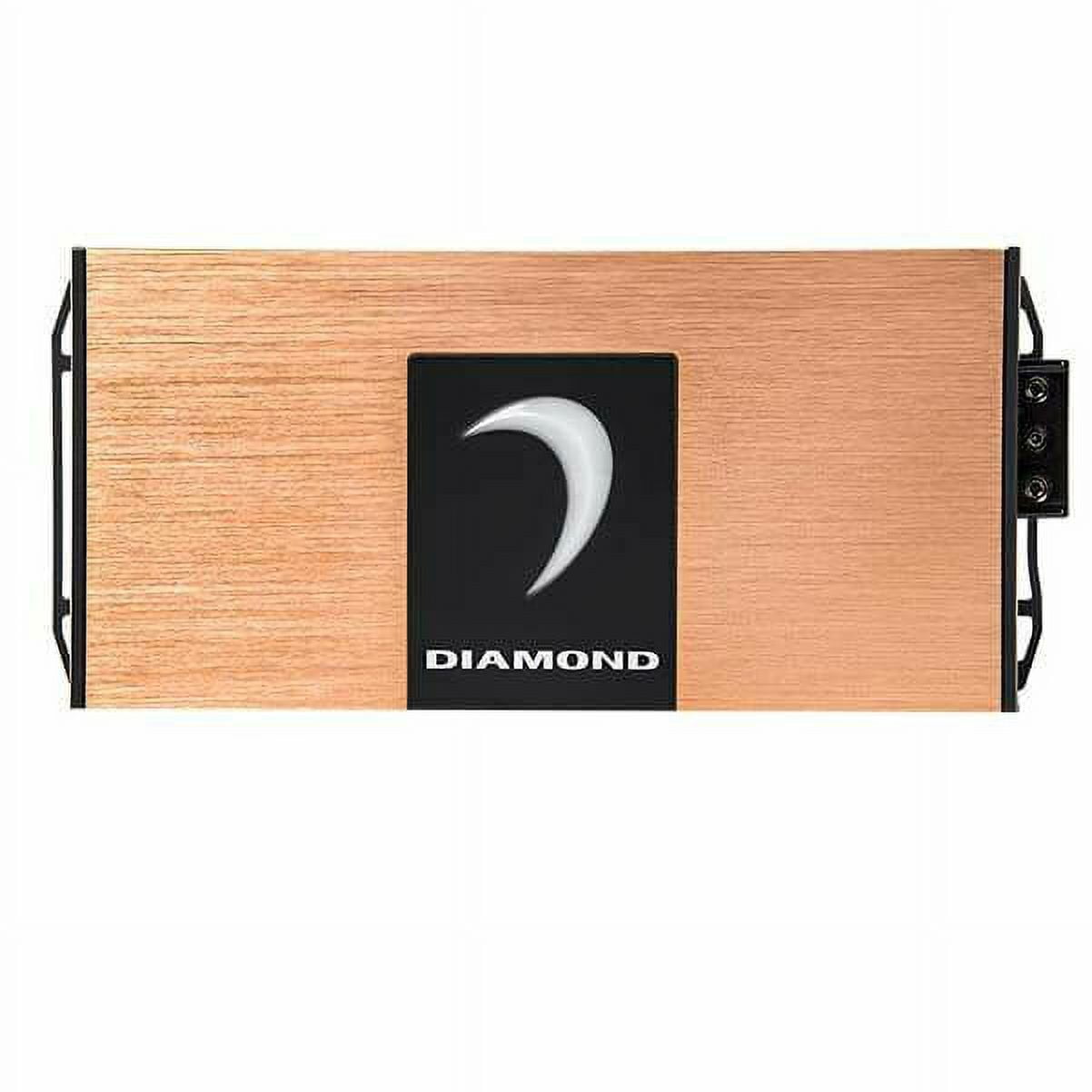

Diamond Audio MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier
Product details
| Management number | 238014516 | Release Date | 2026/07/11 | List Price | $119.20 | Model Number | 238014516 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MICRO4V2 - MICROV2 Series 4-Channel Full Range Class D Amplifier<br>Discover exceptional sound quality in a compact design with Diamond Audio’s MICROV2 series of amplifiers. These amps utilize ultra-efficient full-range Class D topology to deliver impressive power despite their small size. The advanced Rollback/Thermal protection ensures uninterrupted play without any risk of shutdown, guaranteeing a reliable performance for your vehicle. <br><br>The MICROV2 series offers endless installation possibilities with its ultra-compact, high-density aluminum alloy chassis, making it versatile and easy to fit into any setup. The balanced differential inputs ensure noise-free operation, while the full-range digital Class D technology with Direct FET power MOSFET output stage ensures top-notch performance and efficiency.<br><br>Featuring 12dB per octave adjustable crossovers, Diamond bass boost EQ (12dB @ 45Hz), and advanced rollback power circuitry, the MICROV2 series keeps your music playing smoothly. The selectable 3-option Auto Turn-On Mode circuit works seamlessly with any OEM head unit, simplifying installation and enhancing convenience for the user.<br><br>When you seek quality and performance in a compact package, the MICROV2 series from Diamond Audio is your go-to choice. Upgrade your vehicle's audio system today and enjoy the perfect blend of power, efficiency, and flexibility.<br><br>Specifications:<br>- Power Output: 150W x 2CH @ 2Ω, 80W x 4CH @ 4Ω, 300W x 2CH @ 4Ω Bridged <br>- Input Sensitivity: 0.2-10 Volt <br>- Crossover Filter: 40-400Hz, 12dB Per Octave Slope <br>- Frequency Response: 10-33KHz <br>- Selectable REM / VOX / DC Turn On Modes <br>- Selectable X-Over: LPF / FLAT / HPF <br>- Selectable 2CH / 4CH Input Modes <br>- Dimensions: 9.7” x 4.0” x 1.46” / 230.5 x 103 x 37.2 mm <br>- Disconnected RCA Input & Speaker Output Harness Kits Included
- Ultra-efficient Class D amps.
- Ultra-compact and versatile
- Advanced Rollback/Thermal protection
- Ultra-compact, high-density aluminum alloy chassis
- Selectable 3-option Auto Turn-On Mode circuit
| Brand | Diamond Audio |
|---|---|
| Rms power rating | 600 W |
| Channels | 4 |
| Impedance | 2 ohm |
| Features | Compact |
| Peak audio power handling | 600 W |
| Input/output type | RCA |
| Rec. use | Performance |
| Size | 9.7" x 4.0" x 1.46" |
| Color | Multicolor |
| Rec location | Vehicle |
| Audio output | 150 W |
| Total harmonic distortion | 1 % |
| Signal-to-noise ratio | >90 |
| Items included | Disconnected RCA Input & Speaker Output Harness Kits |
| Accessories | Disconnected RCA Input & Speaker Output Harness Kits |
| Inputs/Outputs | RCA Input, Speaker Output |
| Input/output direction | Input, Output |
| Model | MICRO4V2 |
| Vehicle type | Car |
| Vehicle fitment type | Universal |
| Vehicle make | Harley |
| Has written warranty | No |
| Has nrtl listing certification | N |
| Assembled product weight | 2.64 lb |
| Volts | 0.2 V |
| Amps | 0.7 Amps |
