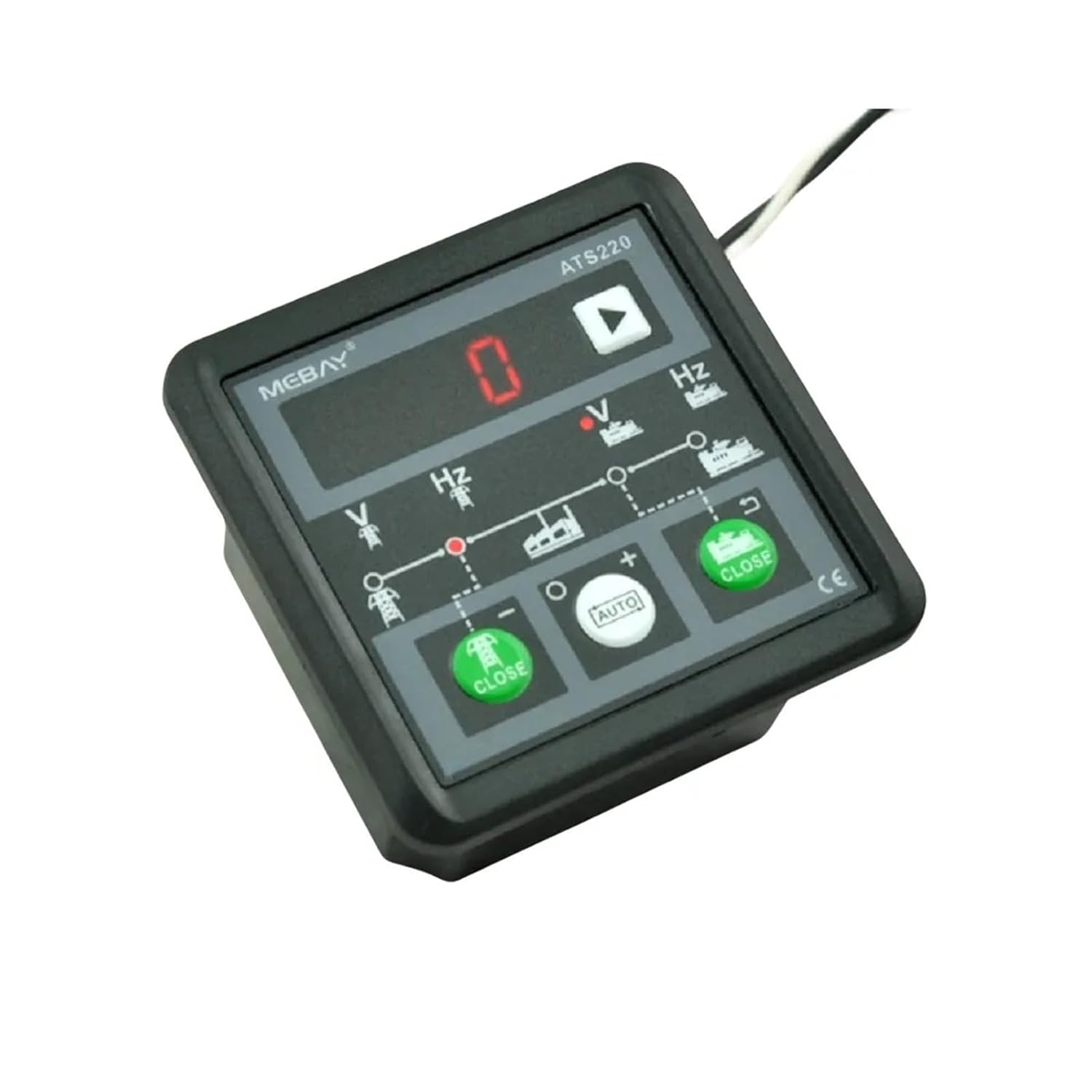

ATS220 Genset ATS Controller auto or Manual Generator Control Switch Module
Product details
| Management number | 237393705 | Release Date | 2026/07/10 | List Price | $61.86 | Model Number | 237393705 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Electronic Engine ControlGenset ATS controller ATS220(which can control the ATS switch)ATS220 is one controller with ATS system of Mains and genset power,which can control the ATS switch by auto or manual mode to apply for mains and gens power.It is with 4 digits LED tube which can display the single-phase gens voltage, gens frequency, mains voltage, mains frequency. ATS switch working status can be also shown by LED.All the parameters can be set through the front face buttons or PC port.Main Features* 32 units Micro-procession technology is used.* Wide voltage range: 8-36V.* 4 digits LED tube which can display mains, voltage, frequency.* Totally 7 relay's output, max current is 5A(250VAC).* 1 group programmable switch input.* Parameters can be set by front face buttons.* Standard water-proof rubber, the protection level can at IP54Specification Parameter: Operation Voltage :DC8-36V ContinuousPower Consumption: Standby:24V:MAX 1WWorking:24V:MAX 3WMains AC Voltage Input:30VAC-300VAC(ph-N)Gens AC Voltage Input:30VAC-300VAC(ph-N)Gens Close Output:5Amp(AC250V) free output Mains Close Output:5Amp(AC250V) free output Gen Start Relay:5Amp(AC250V) free output Overall Dimension:78mm*78mm*55mmWeight:0.3kg==========Model Number : ATS220Origin : Mainland apply : diesel generatortype : auto start stopvoltage : 220vphase : single phasemax current : 5A : 8~36v
- Electronic Engine Control
- ATS220 Genset ATS controller auto or manual Generator Control switch Module
| ASIN | B0H1J7J39Y |
|---|---|
| Model | JVPDSLMN |
| Brand Name | JVPDSLMN |
| Part Number | JVPDSLMN |
| Contact Type | Normally Closed |
| Manufacturer | JVPDSLMN |
| Mounting Type | Chassis Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 Amps |
| Contact Material | Aluminum |
| Specification Met | UL |
| Contact Current Rating | 1 Amps |
