8 Gang Switch Panel w/RGB Toggle Momentary Pulsed Memory Function Auto Dimmable ON Off LED Switch Touch Box Universal Circuit Control Relay System 12/24V Waterproof for Car Truck ATV UTV SUV
Product details
| Management number | 236923251 | Release Date | 2026/07/10 | List Price | $32.00 | Model Number | 236923251 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 8 Gang Switch Panel System:Max Current:60A,Voltage:DC12-24V,Rated Voltage:12V20A/24V10A,Operating 12V:max 600W,Operating 24V:max 1200W,operating temperature: -40℉ - 105℉,IP65 waterproof rate, with high sensitivity, stability and strong anti-interference ability

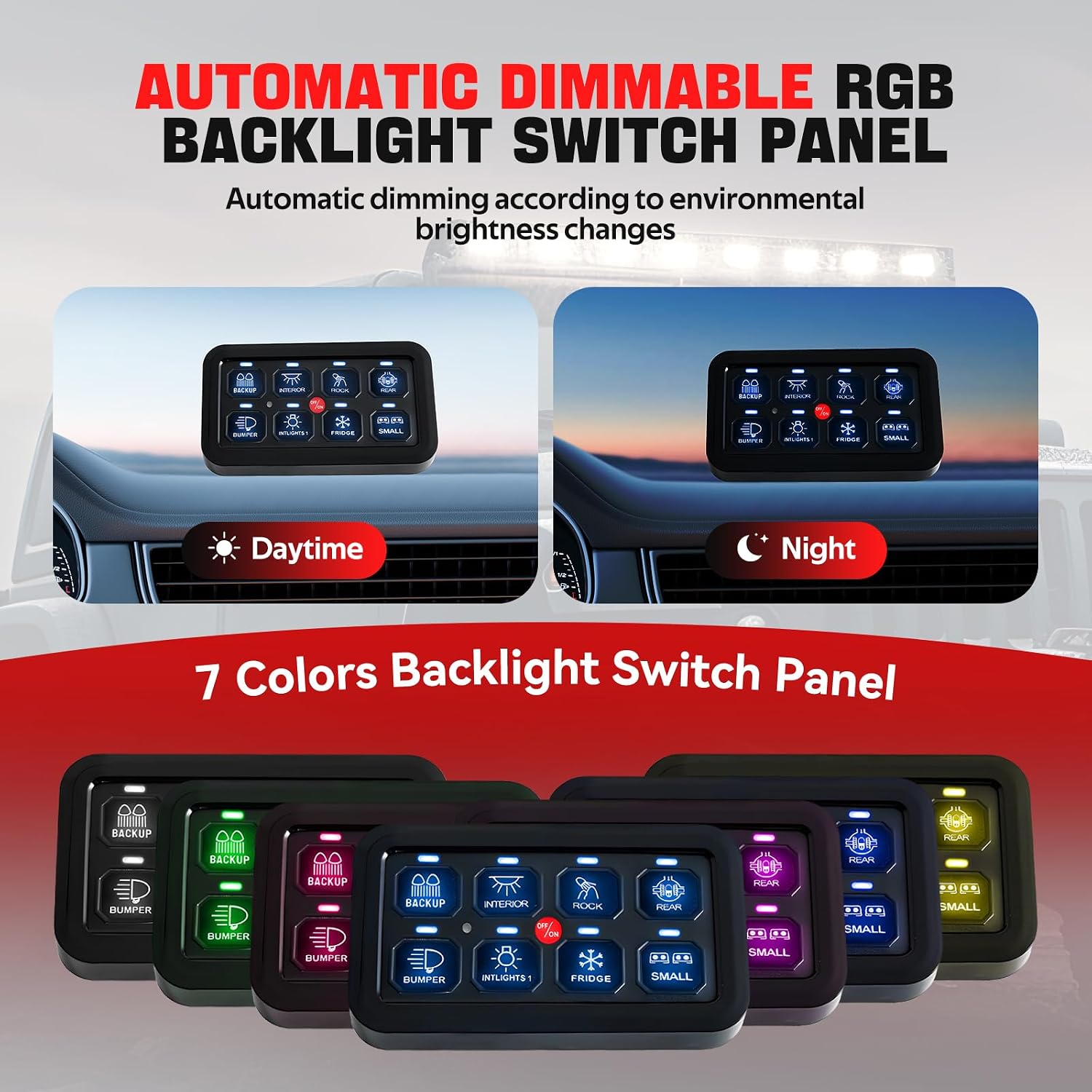

- RGB Backlight with Auto-Dimming:The 8 gang switch panel offers 7 RGB backlight color options to suit the car's ambient lighting.switch panel have automatic dimmable feature, the backlight brightness of the switch panel will change according the brightness of environment. The brighter the environment is, the brighter the backlight will be
- Safety Protection Design:There are three protections to ensure the safely use of the 8 gang panel, includes built-in high power relays, fuse holders and a 60A circuit breaker,provide over-voltage protection, reverse polarity protection, over-current protection, thermal protection, come with additional fuses for replacement, providing all your connected LED lights & accessories work safely
- 3 Lighting Modes&Memory Function:This 8 gang switch panel features 3 lighting modes: Toggle (push button control), Momentary (press and hold to turn on, release to turn off), and Pulsed (strobe mode).The "ON/OFF" button on the gang switch panel not only turns the panel on and off but also serves as a memory function. Pressing it will automatically restore the light settings from before it was turned off, enhancing your driving experience
- Wide Application:The 8 gang switch panel is universally compatible with all 12-24v vehicles, including trucks, off-road vehicles, cars, buses, RVs, ATVs, UTVs, SUVs, etc.The switch panel can be installed on the dashboard, center console, overhead sunglasses holder, etc
- Easy Installation:No complicated wiring, no need to cut a big hole on your vehicle. Plug & play wiring harnesses ensuring you to connect the led lights or accessories easily. Two types of mounting bracket, you can install it anywhere you need
- Best Gift Idea: Surprise your Husband, Dad, Son, Boyfriend, Brother, your friend, co-worker or Boss; Best gift for Christmas, Birthday, Father’s day, Anniversary, Graduation
| ASIN | B0FCLW3TGM |
|---|---|
| Model | 8 Gang Switch Panel |
| Wattage | 1200 watts |
| Brand Name | BARTOO |
| Unit Count | 1.0 Count |
| Part Number | BOV127 |
| Coil Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | BARTOO |
| Mounting Type | Panel Mount |
| Connector Type | Plug-In |
| Current Rating | 60 Amps |
| Operation Mode | ON-OFF |
| Contact Material | Aluminum |
| Specification Met | UL |
| Included Components | 1 |
| Contact Current Rating | 60 Amps |
| Upper Temperature Rating | 105 Degrees Celsius |
| Minimum Switching Voltage | 12 Volts (DC) |
