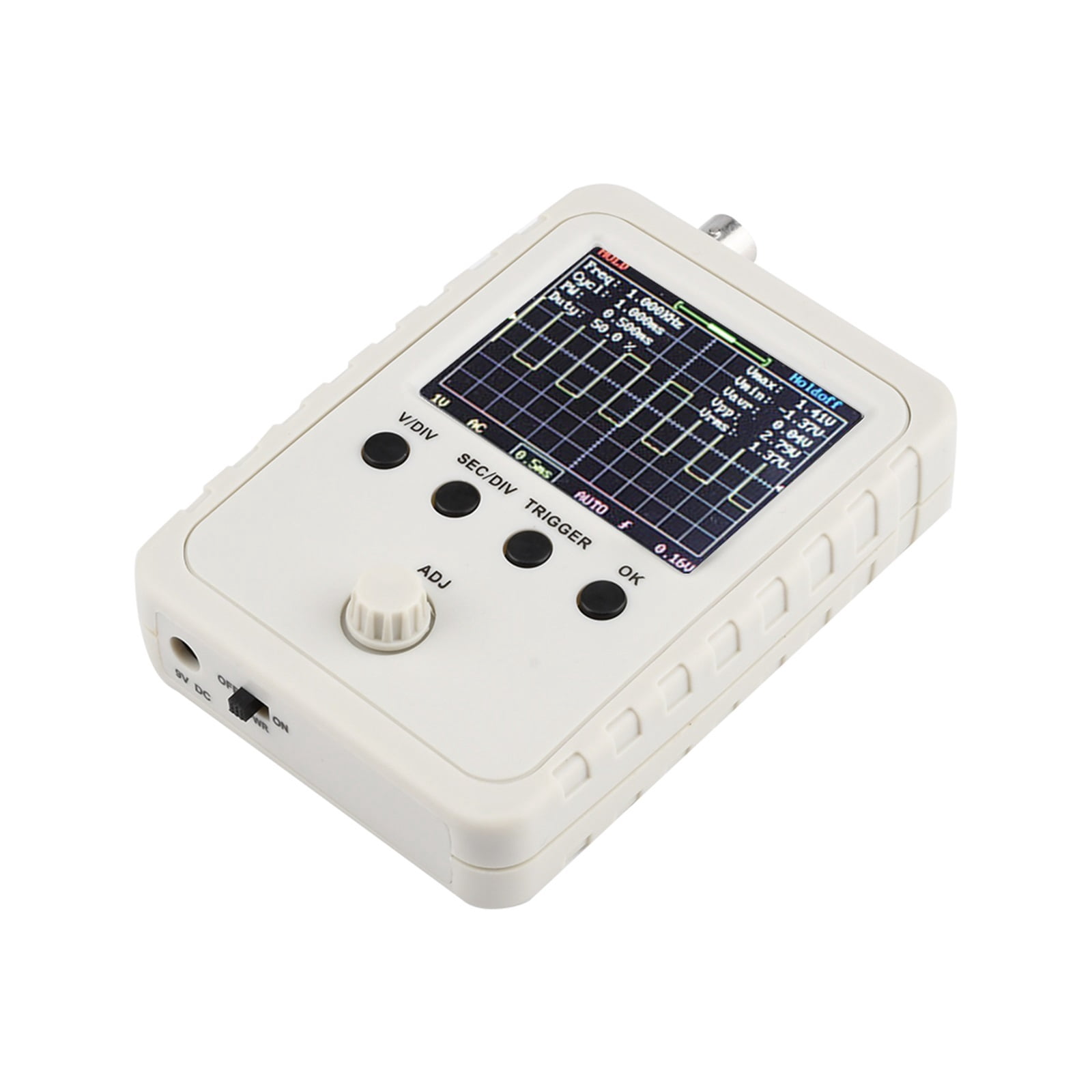

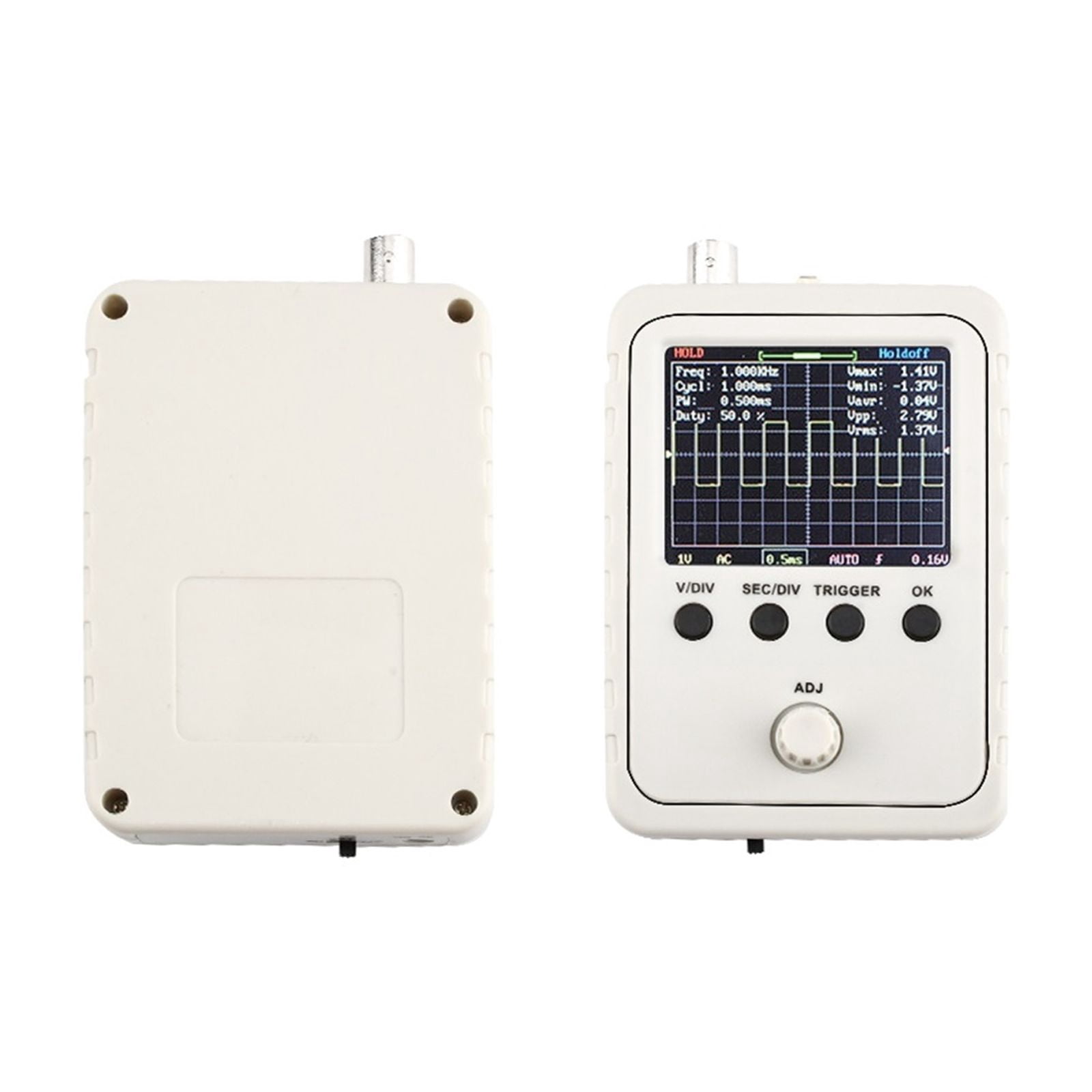

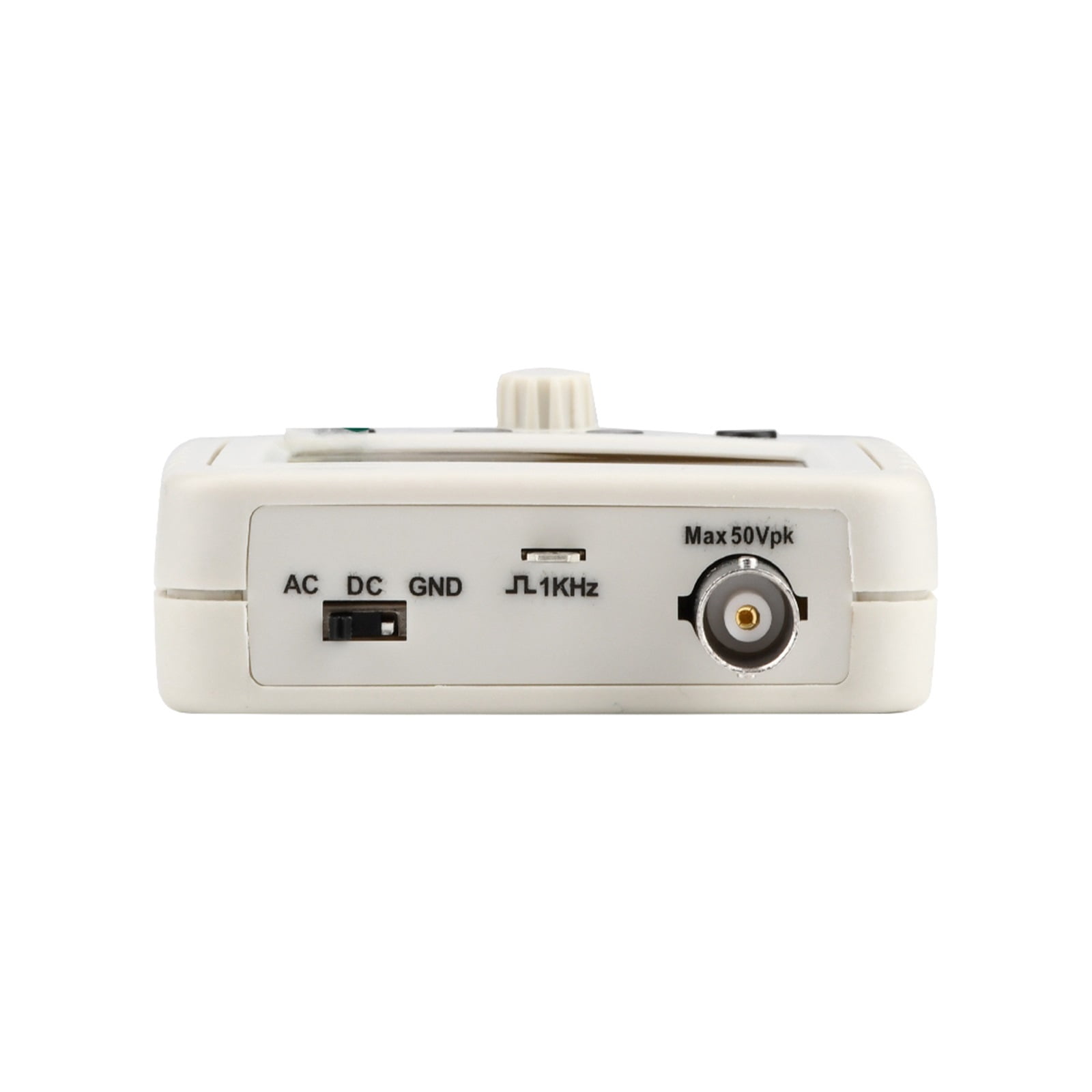

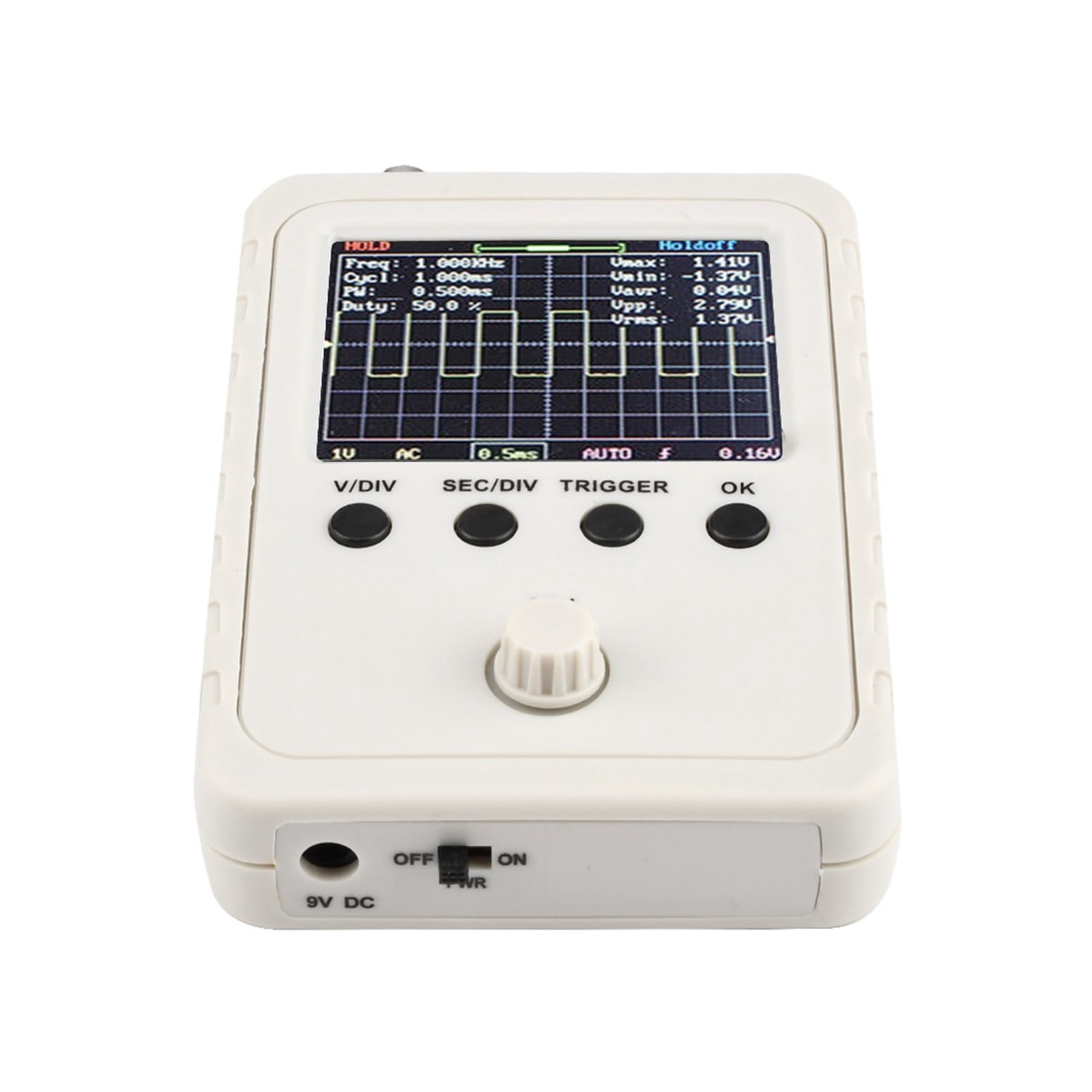

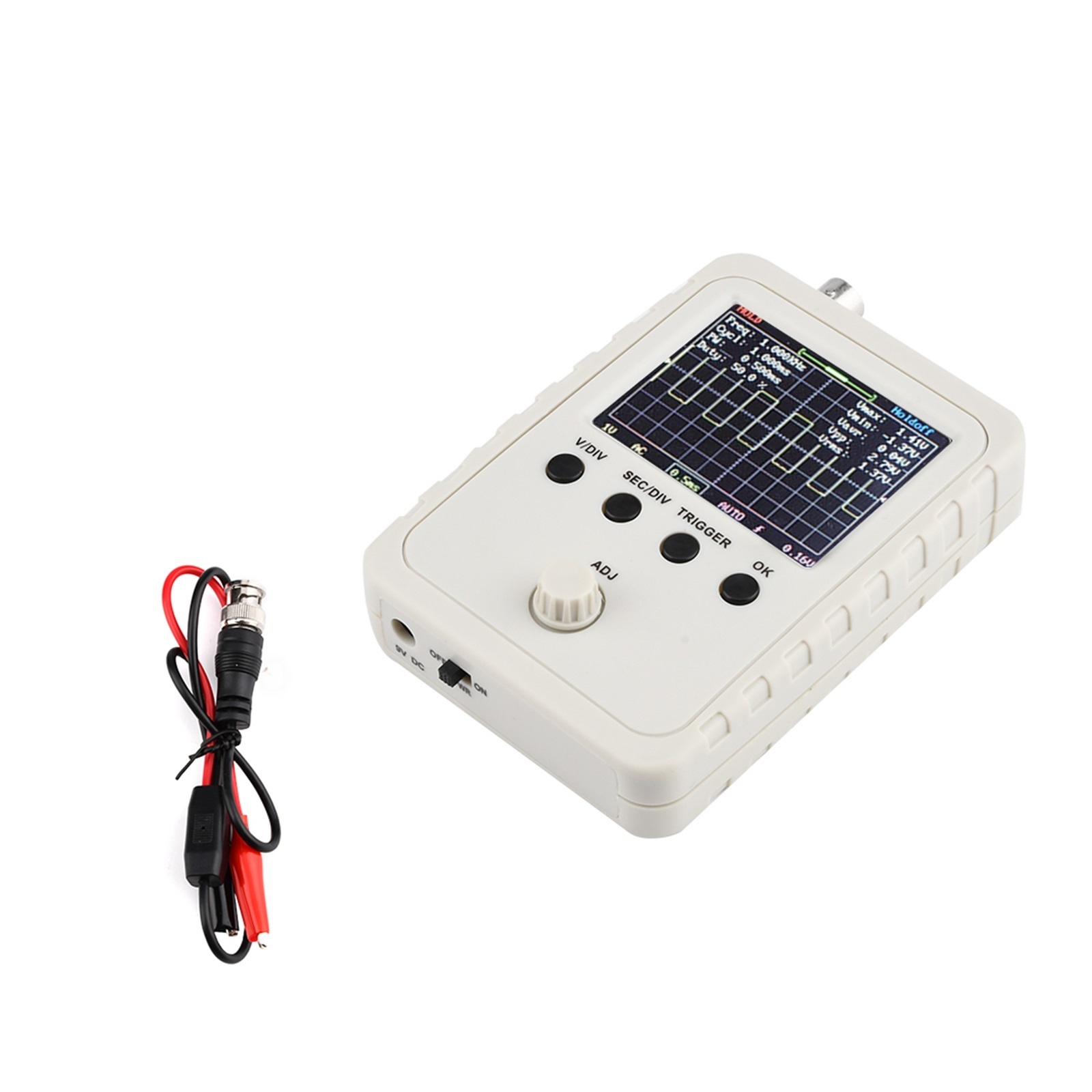

2.24" TFT Display Digital Multimeter With BNC Probe Data Oscilloscope Meter Output Analog Bandwidth ,Professional Designed

<p>Features:</p><p>-With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.</p><p>-Waveform storage function: will not lose the waveform after power off.</p><p>-Short-circuit and open-circuit detection: can help the user find out the soldering error.</p><p>-controller recognition function.</p><p>-More suitable for electronic beginner.</p><p></p><p>Specifications:</p><p>Maximum Real-time Sampling Rate: 1MSa/s</p><p>Analog Bandwidth: 0-200KHz</p><p>Sensitivity Range: 5mV/div-20mV/idv</p><p>Maximum Input Voltage: 50Vpk (1X probe)</p><p>Input Impedance: 1M ohms/20pF</p><p>Accuracy: 12 Bits</p><p>Record Length: 1024 points</p><p>Coupling Modes: DC / AC / GND</p><p>Time Base Range: 500s/Div - 10us / Div</p><p>Trigger Modes: Auto, Normal, and Single</p><p>Trigger Position: Center of Buffer</p><p>Supply Voltage: DC 9V(8-10V)</p><p>Current Consumption:~120mA @ 9V</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• -Include a 2.4-inch color TFT display screen.
• -With Auto/Normal/Single trigger modes, easy to capture the moment waveform.
• -Available rising or falling edge trigger.
• -Observable previous waveform before trigger(negative delay).
• -Can freeze waveform display at any time(HOLD function).
