10PCS Photosensitive Sensor Module Digital Light Intensity Detection Photosensitive Resistor Module High Power High Efficiency Digital Measurement Electronic Practice DIY

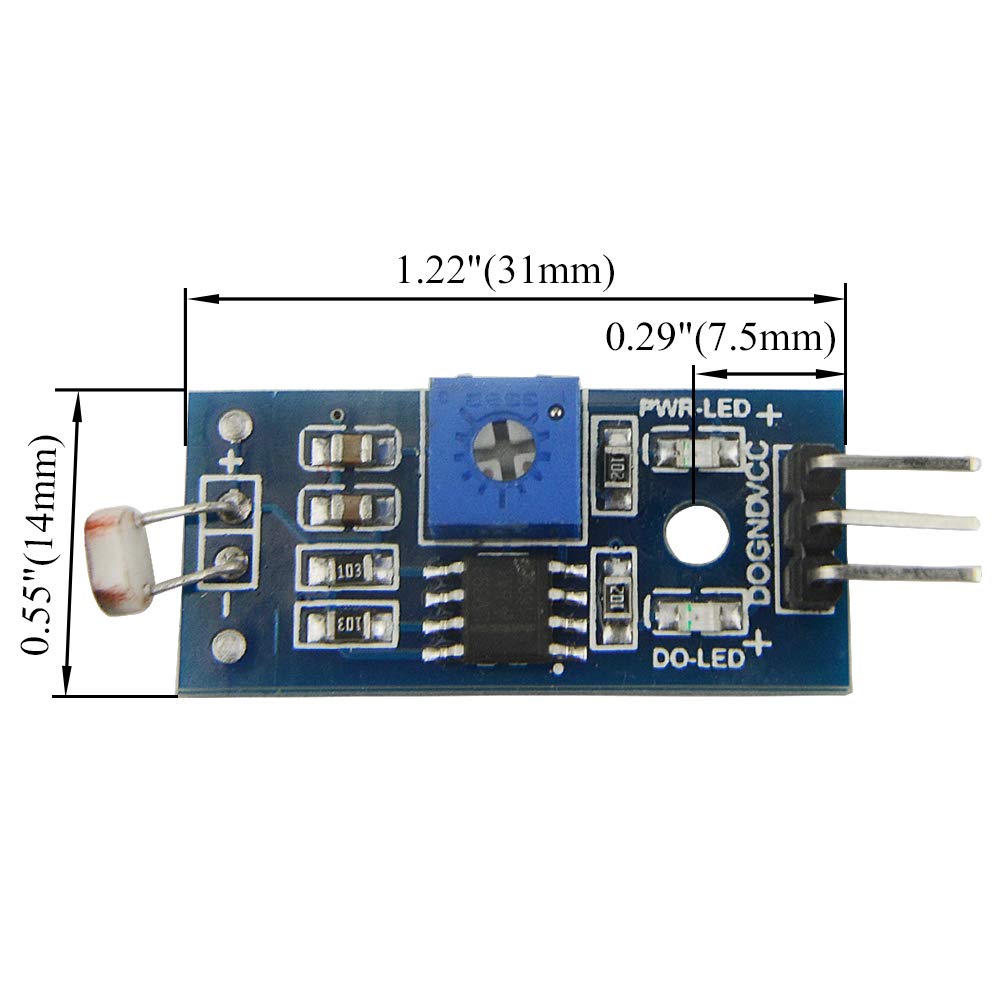

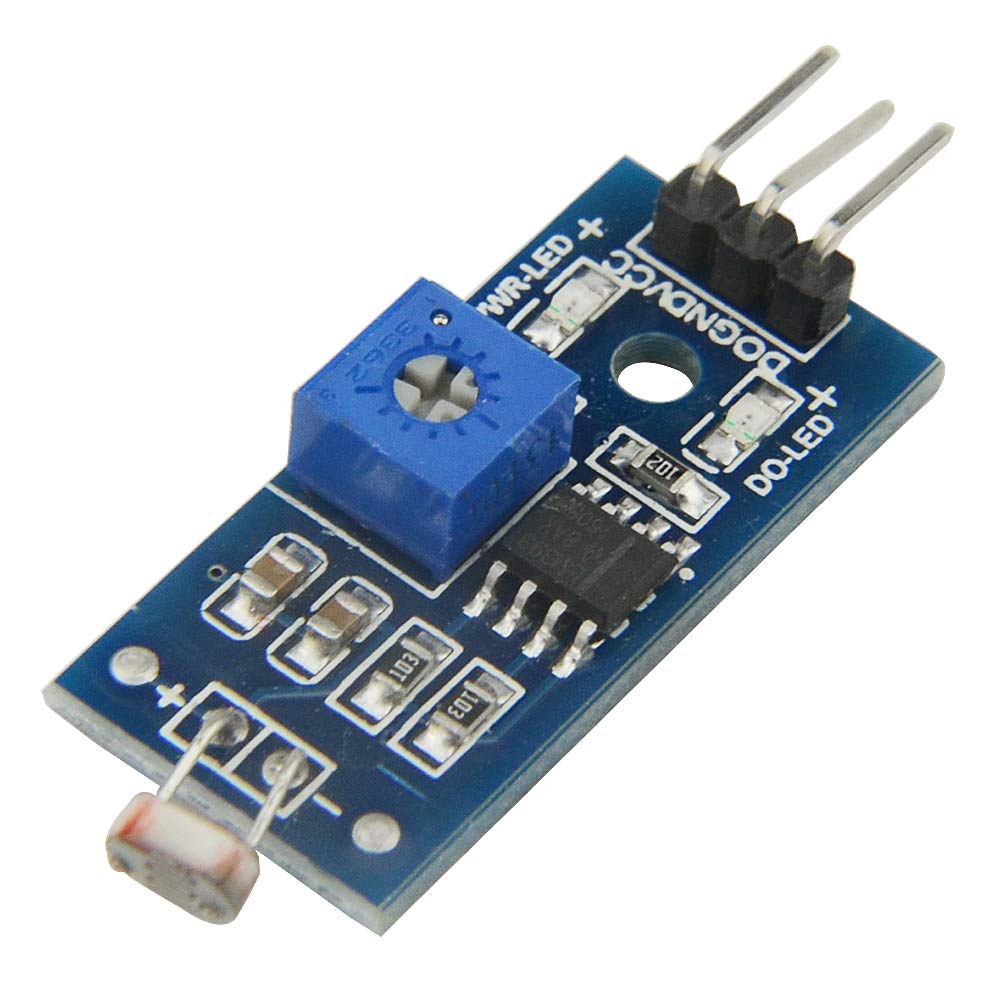

About us: Sensor performance and features: 1.Using sensitive photoresistor sensor. 2. Comparator output, the signal is clean, the waveform is good, the driving ability is strong, more than 15mA. 3.With adjustable potentiometer can adjust the detection light brightness 4 Working voltage 3.3V-5V 5.Output form: digital switch output (0 and 1) 6. With fixed bolt holes for easy installation 7 Small board PCB size: 32mm/1.26’’ x 14mm/0.55’’ 8.Using a wide voltage LM393 comparator 9.Working temperature: -20 ° C ~ +55 ° C 10.Product weight: 3.5g 11.Application: Light intensity detection, intelligent car light module, with directional, only sense light source in front of the sensor, better to use for searching light. Package including: 10 x sensor module Module instructions 1.The photoresistor module is most sensitive to ambient light, generally used to detect the brightnessof the surrounding environment, triggering a single-chip or relay module; 2. When the brightness of the ambient light reaches the set threshold, the DO end outputs a high level.When the ambient light brightness exceeds the set threshold, the DO end outputs a low level; 3. The DO output terminal can be directly connected to the single-chip microcomputer, and the high-low level is detected by the single-chip microcomputer, thereby detecting the change of the light brightness of the environment; 4. The DO output terminal can directly drive the relay module of the store, which can form a light control switch.

• Super material: It is made of electronic accessories element, inner conductor is pure copper. it is long lasting and durable for you to use. With adjustable potentiometer can adjust the brightness of the light detected
• Working voltage: 3.3V-5V, the output format: Digital switching output (0 and 1)
• Convenient tool: Used for light intensity detection, light intensity sensor, intelligent car light seeking module. Comparator output, signal clean waveform is good, driving ability, than 15mA.
• High Power High Efficiency: Low power consumption, small size, easy for embedded installation. High sensitivity and high reliability. With fixing screw hole, convenient for install and fixed. Small size, low power consumption, fast response. Strong vibration resistance, good electromechanical performance, long signal transmission
• A wide range of applications: Widely used in various auto-sensing of electrical equipment, body induction lamps, body sensors toys, especially battery-powered automatic control products
